Hardware Components

Replacing the Flash Card

1. Using either a flat-bladed or Torx T-10 screwdriver loosen the retaining

screws securing the module.

2. Using the extractor handles, pull the module out from the slot and turn

it over.

3. Slide out the old flash card by applying slight pressure to the top of the

flash card.

4. Position the new flash card properly and slide it in being careful not to

bend any connector pins.

5. Re-install the module into the switch.

6. Use an equal amount of pressure and push both extractor handles closed

to completely seat the module.

7. Tighten the retaining screws.

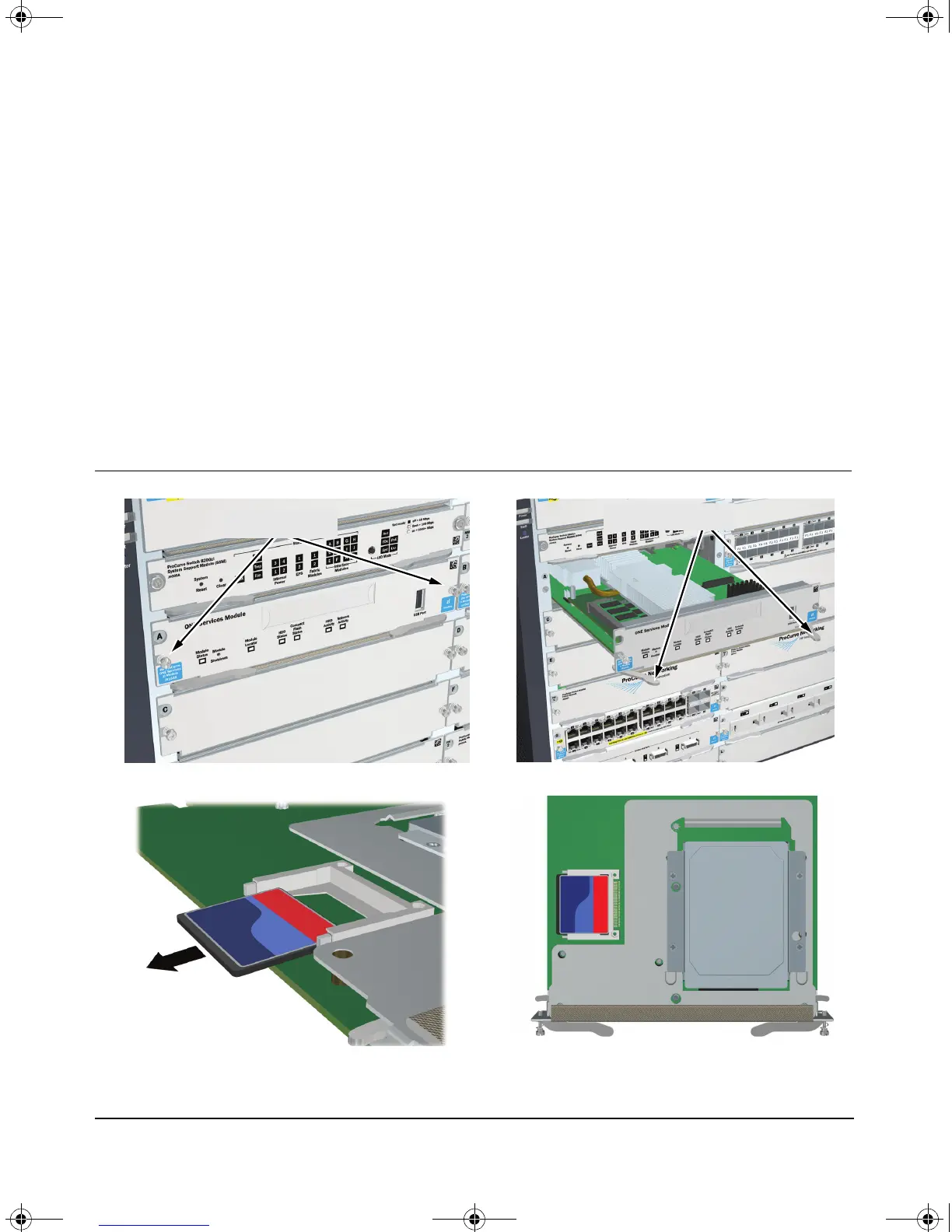

Figure C-6. Steps to Replacing the Module’s Flash Card

1. 2.

3. 4.

Retaining Screws

Extractor Handles
