Slim optical drive bezel blank
On some models, there is a bezel blank covering the slim optical drive bay that needs to be removed before
installing an optical drive. To remove a bezel blank:
1. Remove the access panel (Access panel on page 18).
2. Remove the front bezel (Front bezel on page 18).

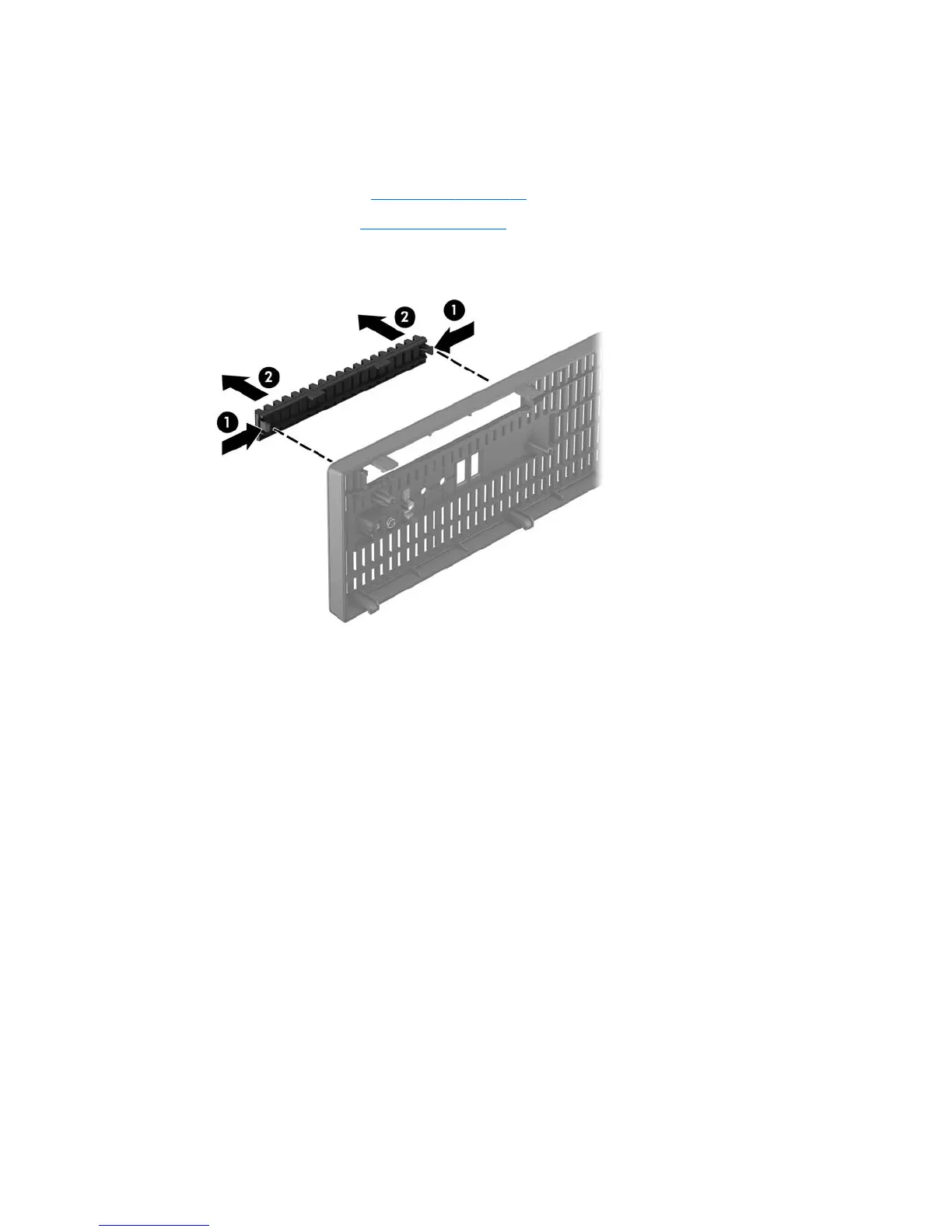

3. To remove a slim optical drive bezel blank, press inward on the two retaining tabs (1) and pull the blank
o the front bezel (2).
Slim optical drive bezel blank 19
