HP ProDesk 400 G3

EL-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01

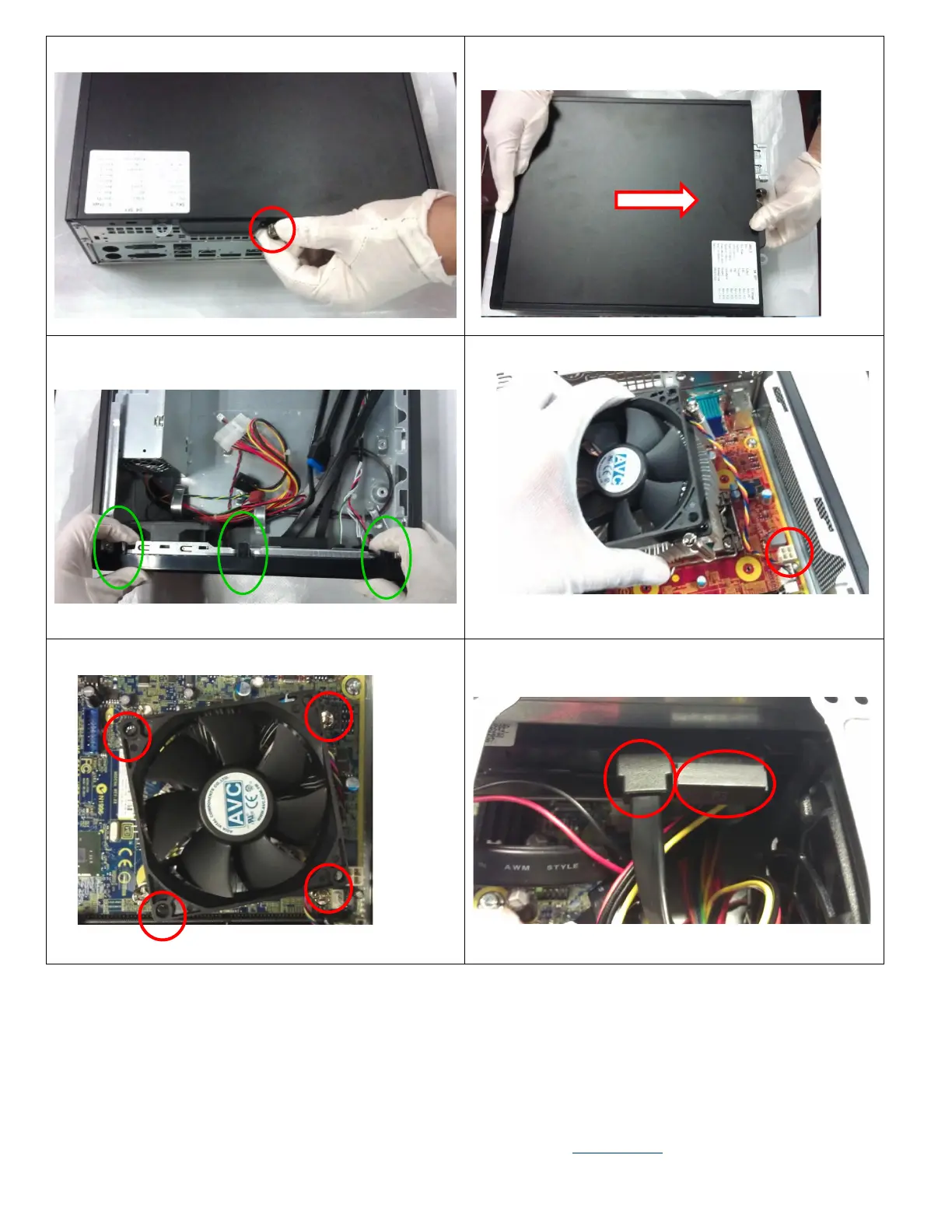

Figure1 Release Thumb screw on the access panel.
Figure2 Griping the tab at the end of access panel, pull
towards the rear and remove from unit.
Figure3 Pull 3 pcs bezel hooks and remove the front bezel
from chassis.
Figure4 Unplug the cooler cable from PCA
Figure5 Release 4 screws from cooler and remove it
Figure6 Disconnect the SATA and power cables from
HDD
