HP ProDesk 400 G3

EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01

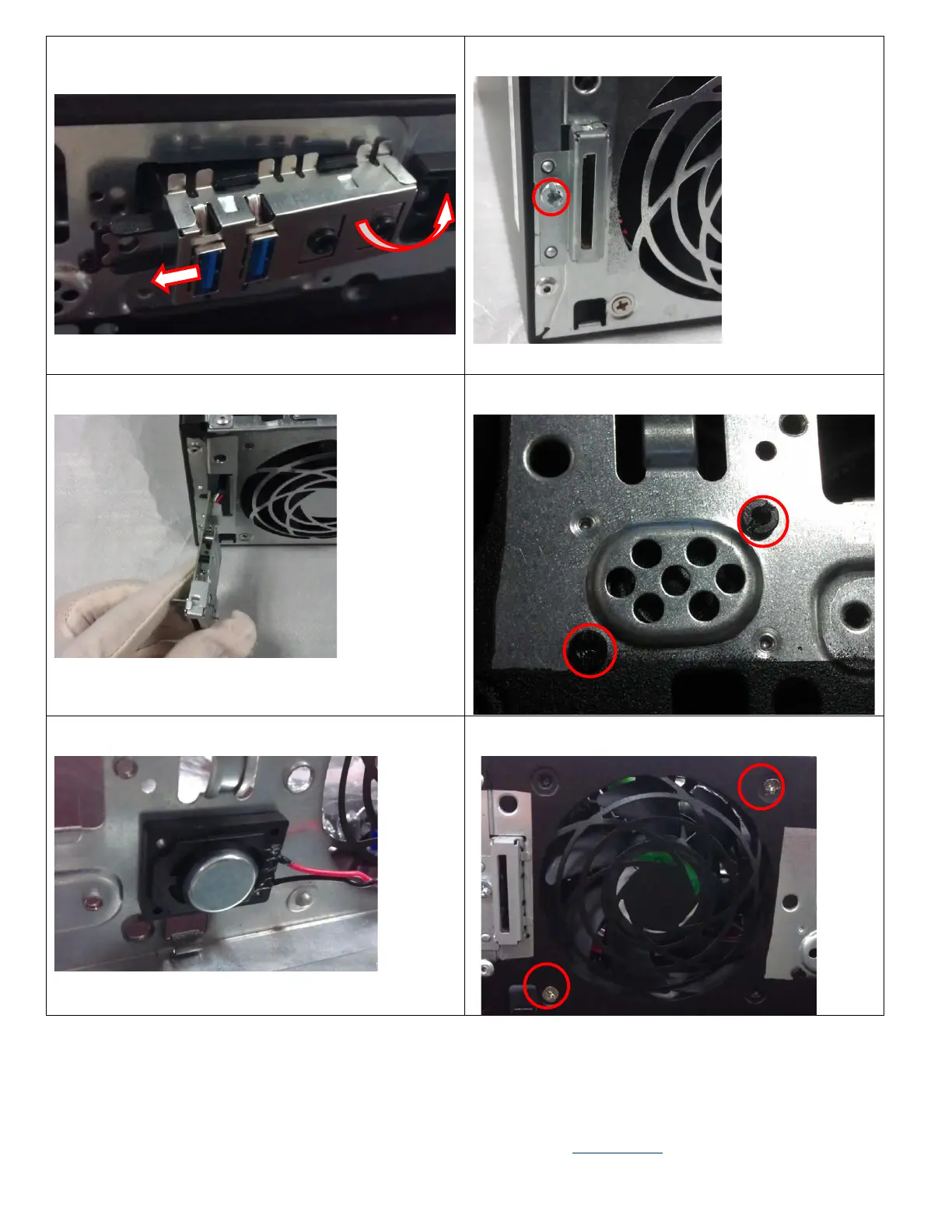

Figure 19 Push the plastic hook and rotation the FIO
module inside. Remove the FIO module from chassis
Figure20 Release the SD card reader screw
Figure21 Remove the SD Card reader from chassis
Figure22 Release two screws of speaker
Figure23 Remove the speaker form chassis
Figure24 Release 2 pcs screws from system fan.
