HP ProDesk 400 G3

EL-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01

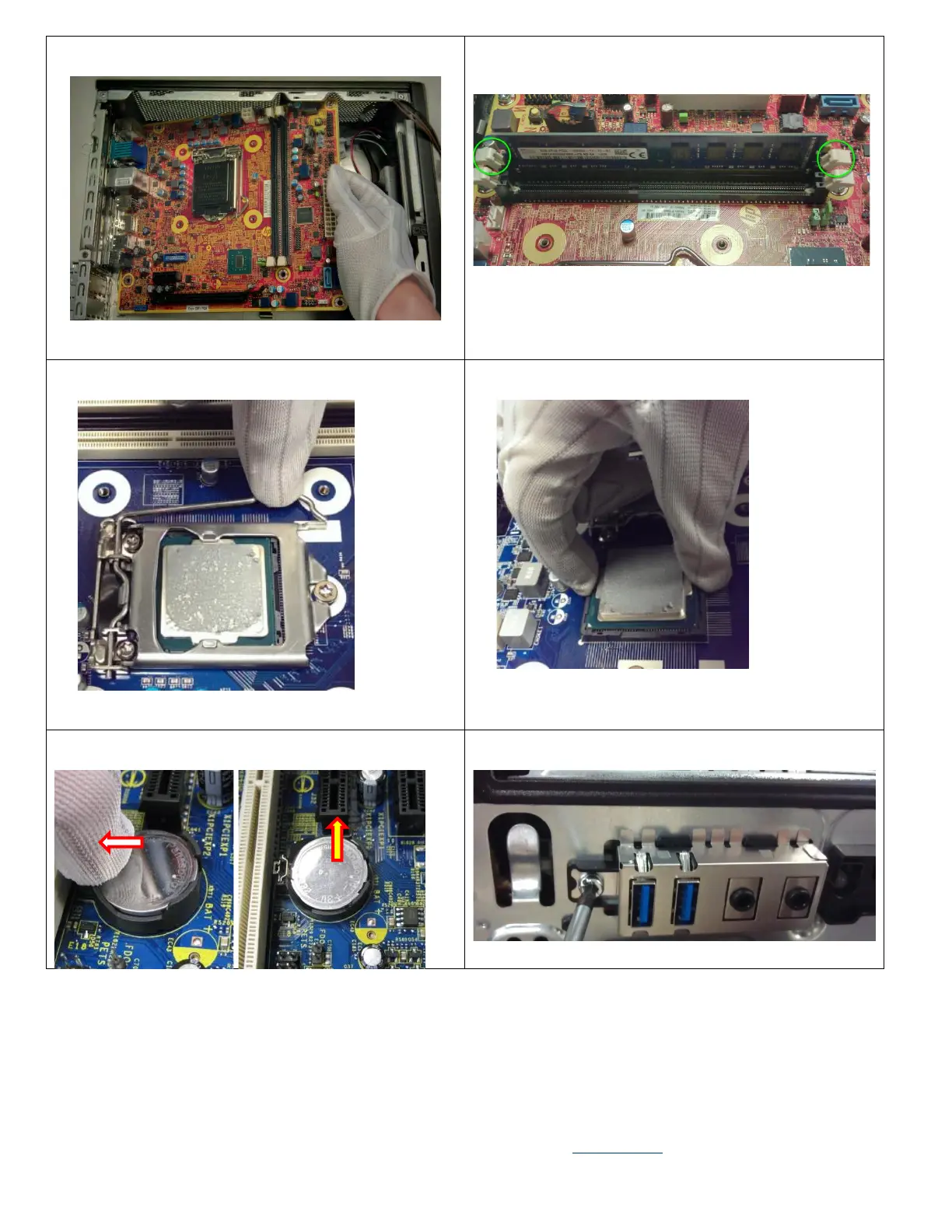

Figure13 Remove PCA from chassis
Figure14 Push the hooks on both sides and then pick up
the memory
Figure15 Rotate the handle and open it up
Figure16 Remove the CPU from board
Figure17 Remove the battery from the PCA
Figure18 Release the screw of the FIO cable
