Speaker
1. Prepare the computer for disassembly (Preparation for disassembly on page 23).
2. Remove the access panel (
Access panel on page 24).

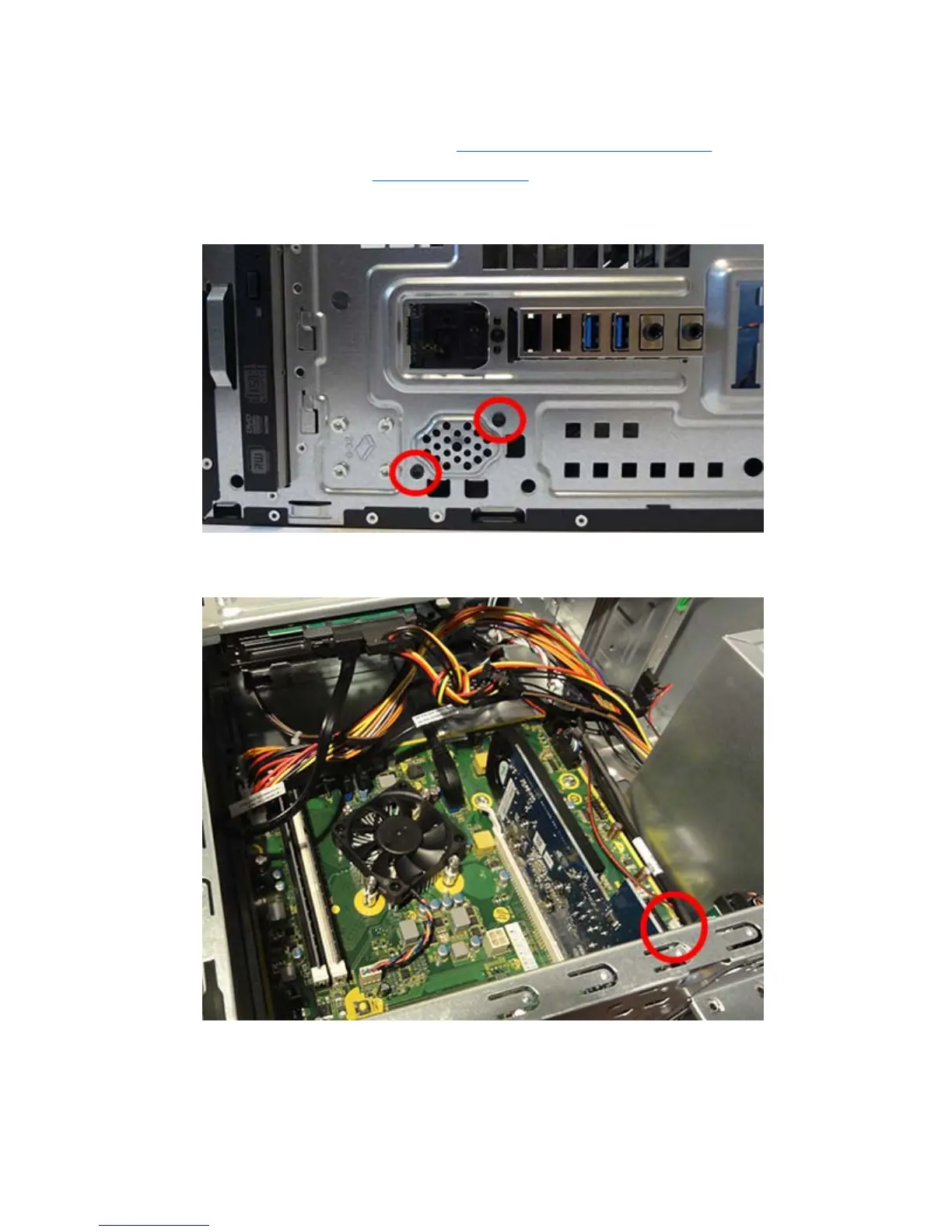

3. From the outside front of the chassis, remove the two Torx T15 screws that secure the speaker to the
front of the chassis.
4. From the inside of the chassis, disconnect the speaker cable from the system board connector labeled
SPKR.
Speaker 51
