Front I/O and power switch assembly
1. Prepare the computer for disassembly (Preparation for disassembly on page 23).
2. Remove the access panel (
Access panel on page 24).
3. Remove the front bezel (
Front bezel on page 25).

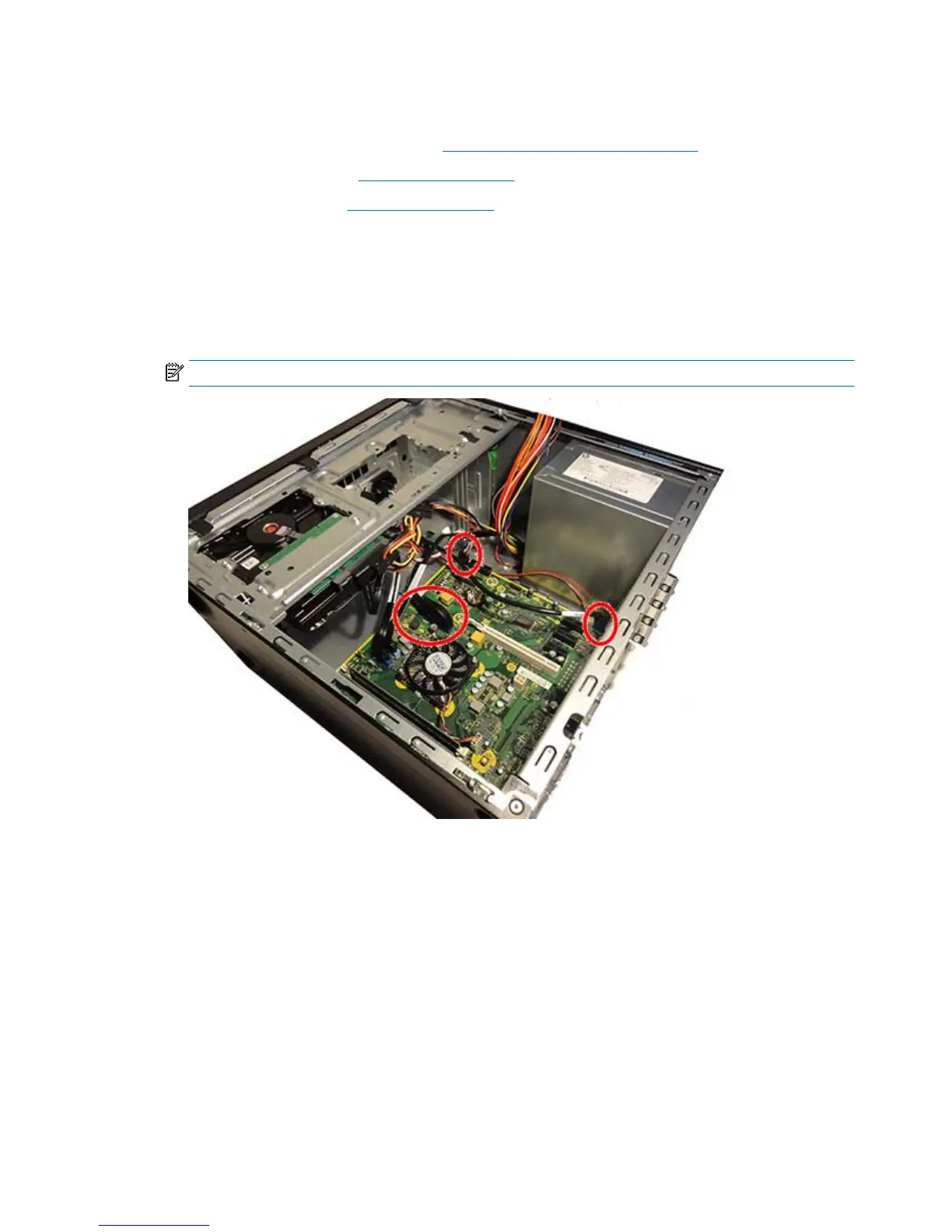

4. From the inside of the computer, disconnect the three front I/O cables from the following system board
connectors:
●
PB/LED
●
FRONTUSB3.0
●
FRONT AUD
NOTE: System board layout may vary.
