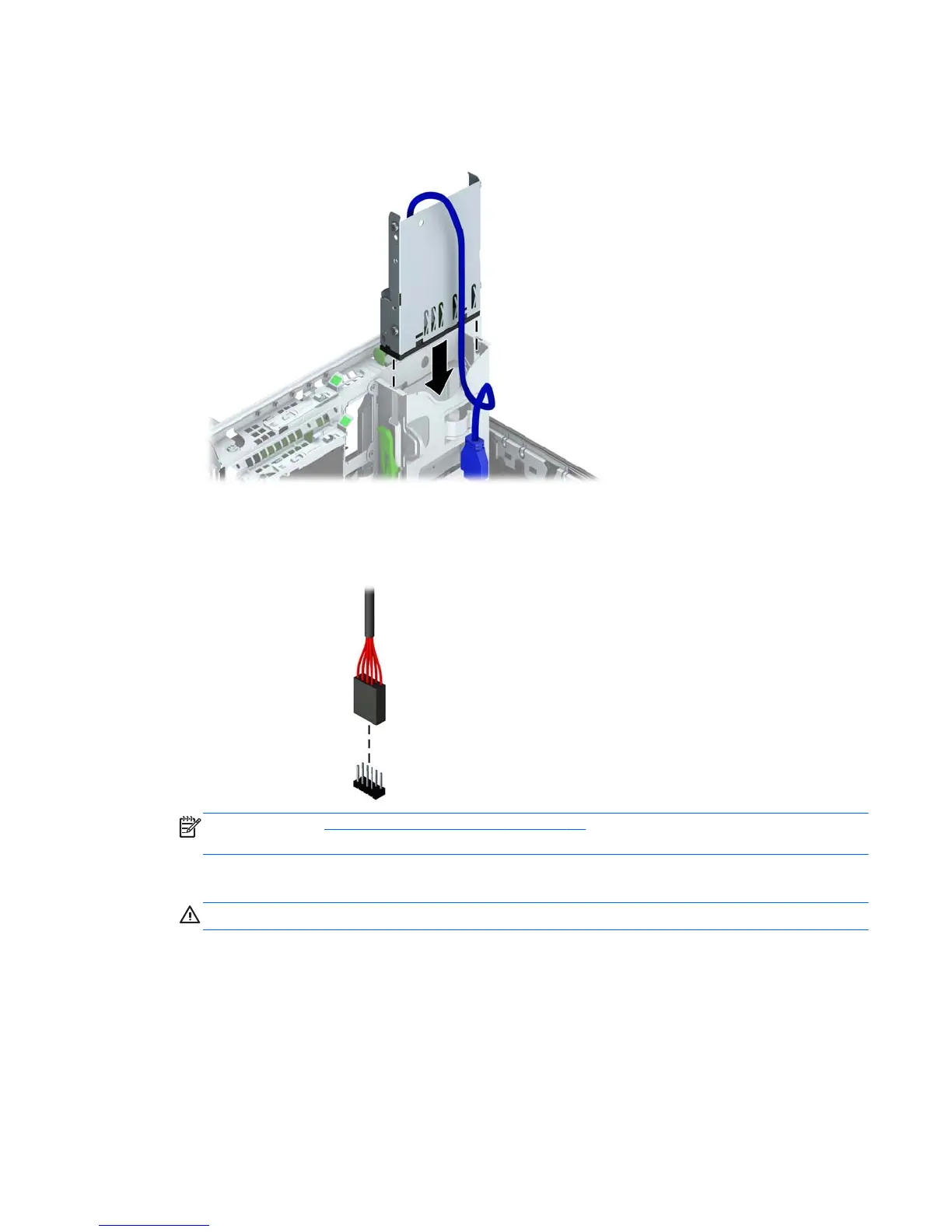

6. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
7. If installing a USB 3.0 media card reader, you must use the USB 3.0 to USB 2.0 adapter and
connect the adapter cable from the media card reader to the USB 2.0 connector on the system
board labeled MEDIA.
NOTE: Refer to System board connections on page 97 for an illustration of the system board
drive connectors.
8. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
Drives
103
