Bezel blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1. Remove the access panel (
Access panel on page 85).
2. Remove the front bezel (
Front bezel on page 86).

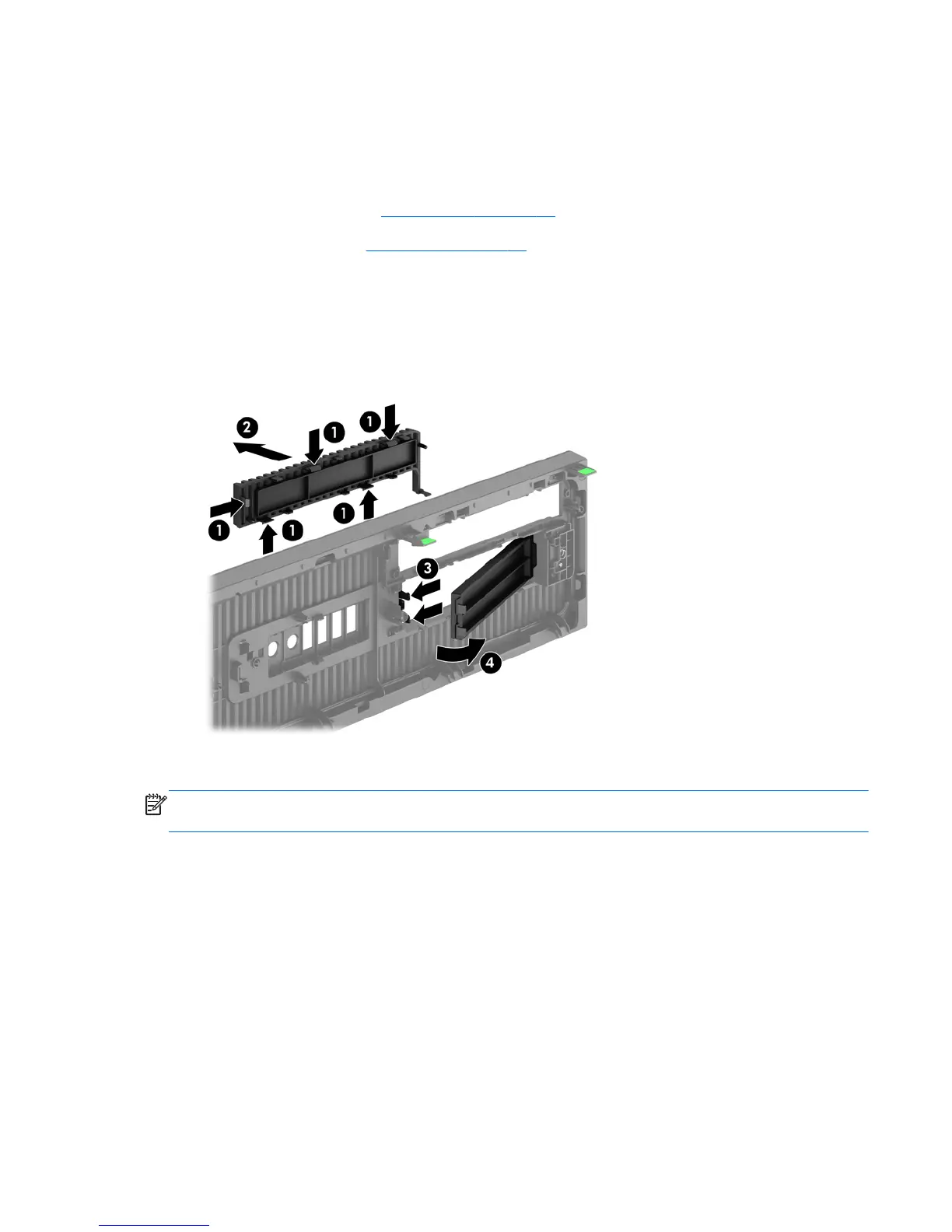

3. To remove a 3.5-inch bezel blank, press inward on the five retaining tabs (1) and pull the blank
off the front bezel (2).
To remove a slim optical drive bezel blank, press the two retaining tabs that hold the bezel blank
in place towards the outer right edge of the bezel (3) and slide the bezel blank back and to the
right to remove it (4).
4. Replace the front bezel.
NOTE: After removing the slim optical drive bezel blank and installing a slim optical drive, you can
install an optional bezel trim piece (available from HP) that surrounds the front of the slim optical drive.
