Front I/O assembly
Description Spare part number
Front I/O assembly 732750-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 36).
2. Remove the access panel (
Access panel on page 37).
3. Remove the front bezel (
Front bezel on page 39).
4. Disconnect the three front I/O cables from the following system board connectors:
●
FRONT USB
●
MEDIA 3.0
●
FRONT AUD

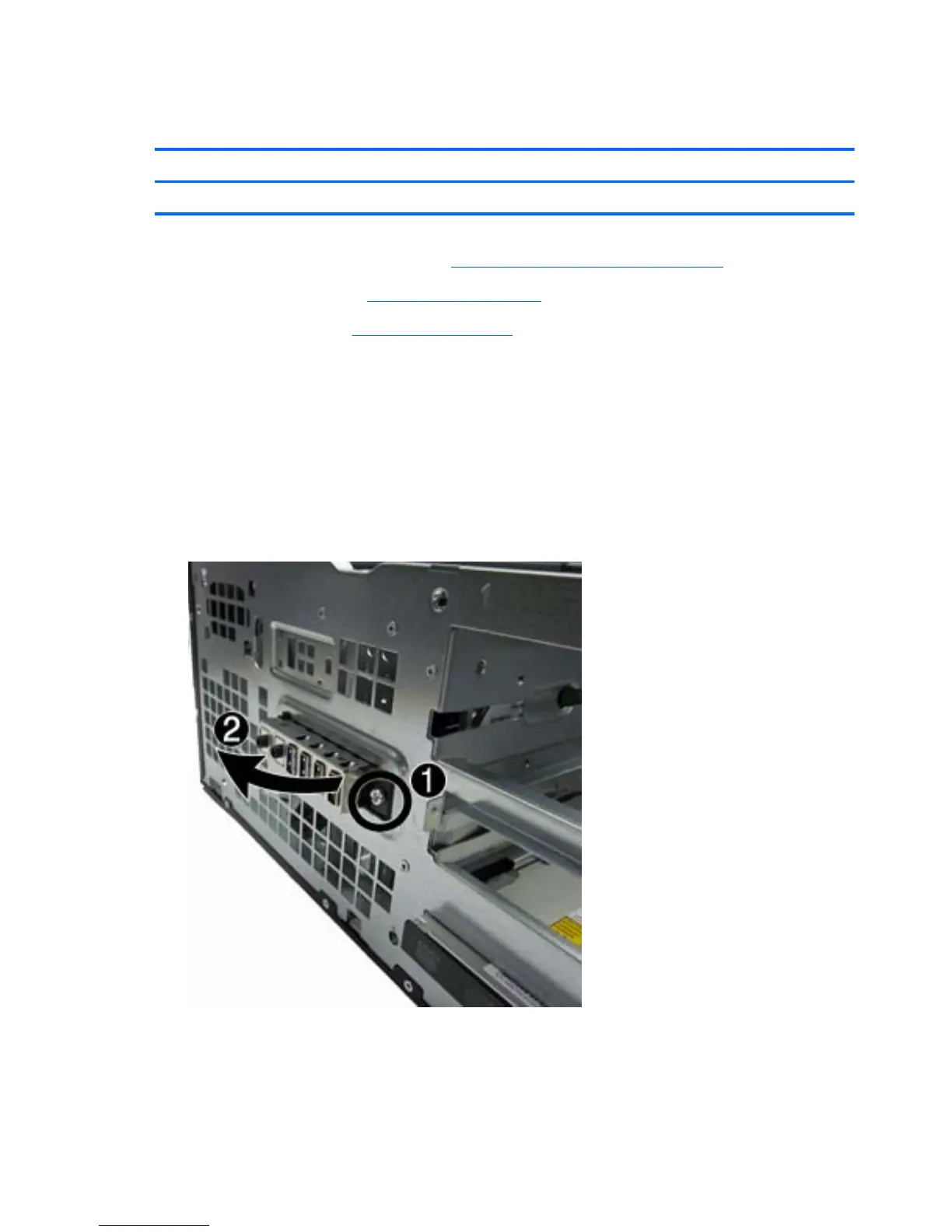

5. Remove the Torx T15 screw that secures the assembly to the chassis (1).
6. Rotate the right side of the assembly outward (2).
7. Pull the assembly away from the computer while threading the wires through the hole in the front
of the chassis.
To reinstall the assembly, reverse the removal procedure.
66 Chapter 5 Removal and replacement procedures: Tower (TWR)
