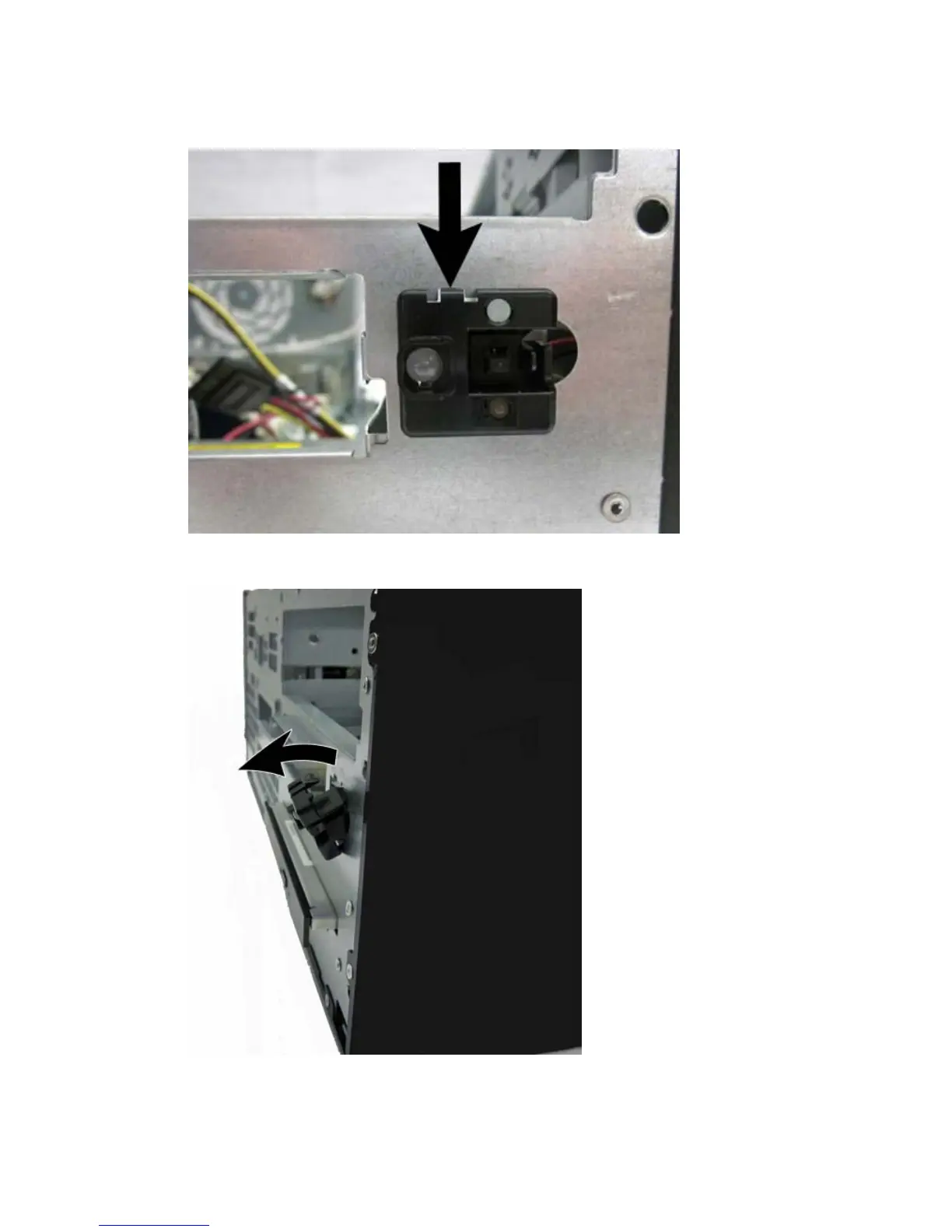

5. Press down on the top of the assembly to disengage the tab that secures the assembly to the
chassis.
6. Rotate the assembly downward to remove it from the chassis.
7. Pull the assembly away from the chassis while threading the cable through the hole in front of the
chassis.
68 Chapter 5 Removal and replacement procedures: Tower (TWR)
