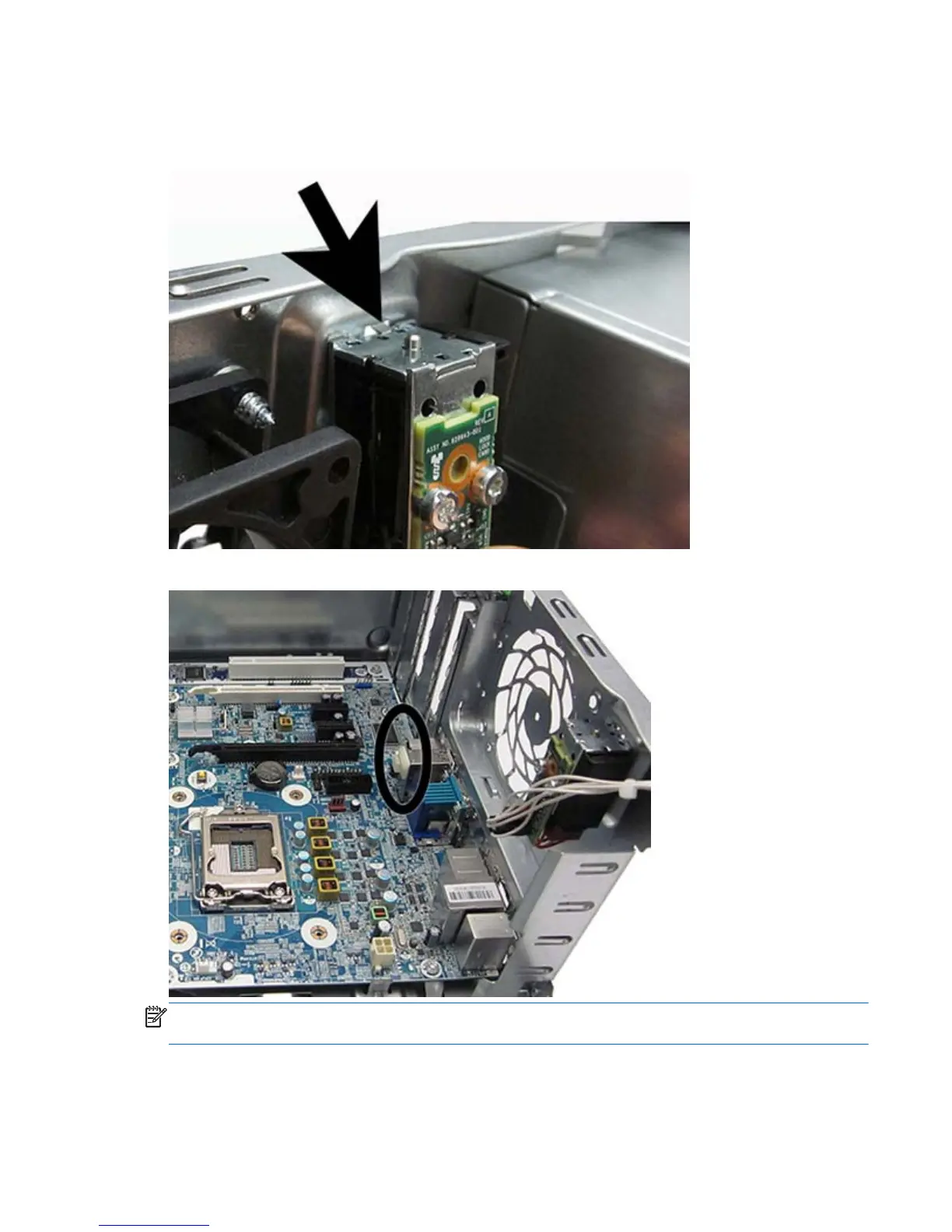

Place the lock up against the tab at the top of the installation location on the rear of the chassis. From
the outside of the chassis, line up the screw holes and install both security screws. Plug the connector
into the system board connector.
Insert the cable into the clip on the back of the system board USB port. Install the clip if necessary.
NOTE: If both the hood lock and hood sensor are installed, make sure the hood sensor cable is under
the hood lock cable in the clip.
Smart Cover Lock (solenoid lock)
75
