Removal and replacement procedures 28
4.

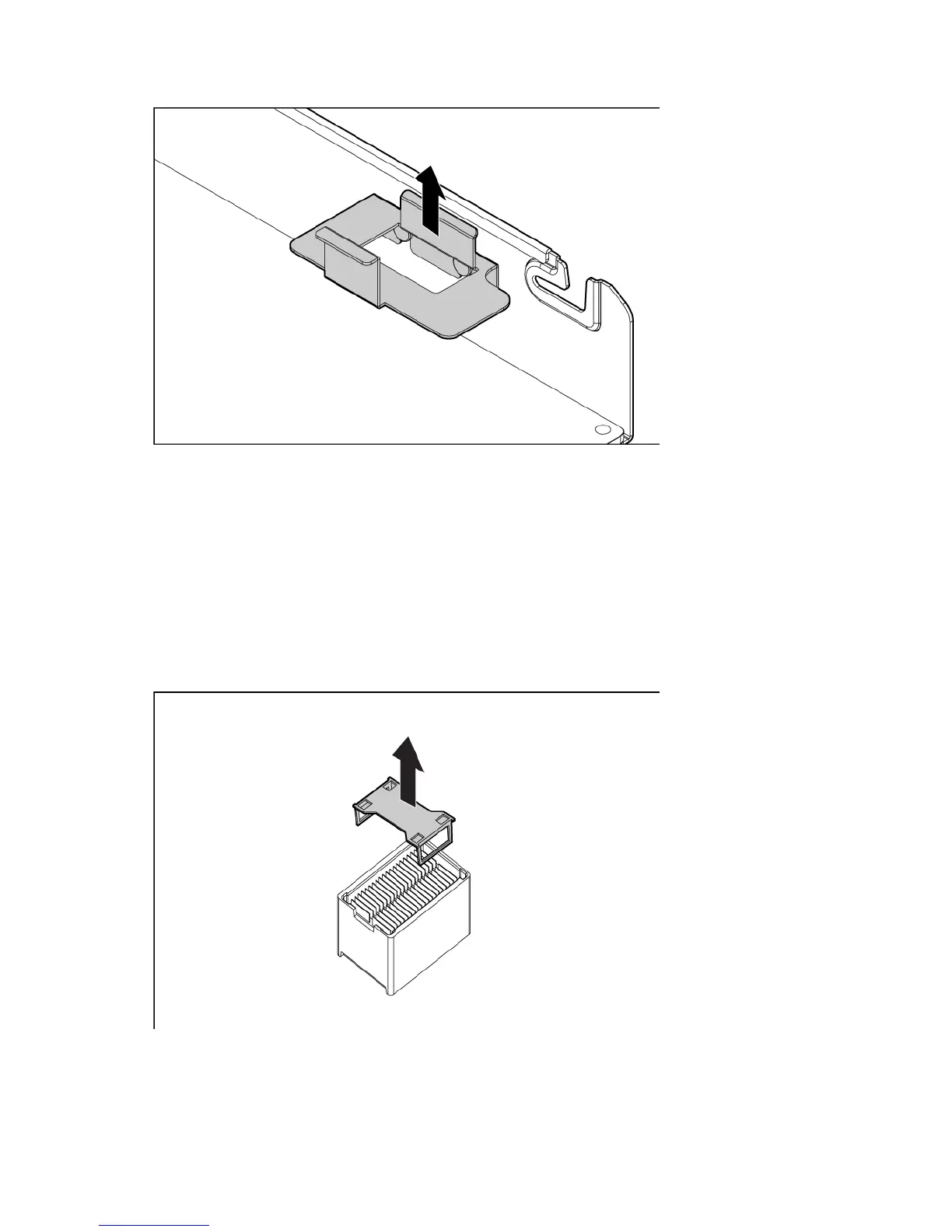

Remove the battery tray.
To replace the component, reverse the removal procedure.
Mezzanine connector cover
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
4. Remove the mezzanine connector cover.
To replace the component, reverse the removal procedure.
