Hardware options installation 49
o
Extend the server from the rack (on page 16).
o Remove the server from the rack (on page 17).
4. Remove the access panel (on page 18).

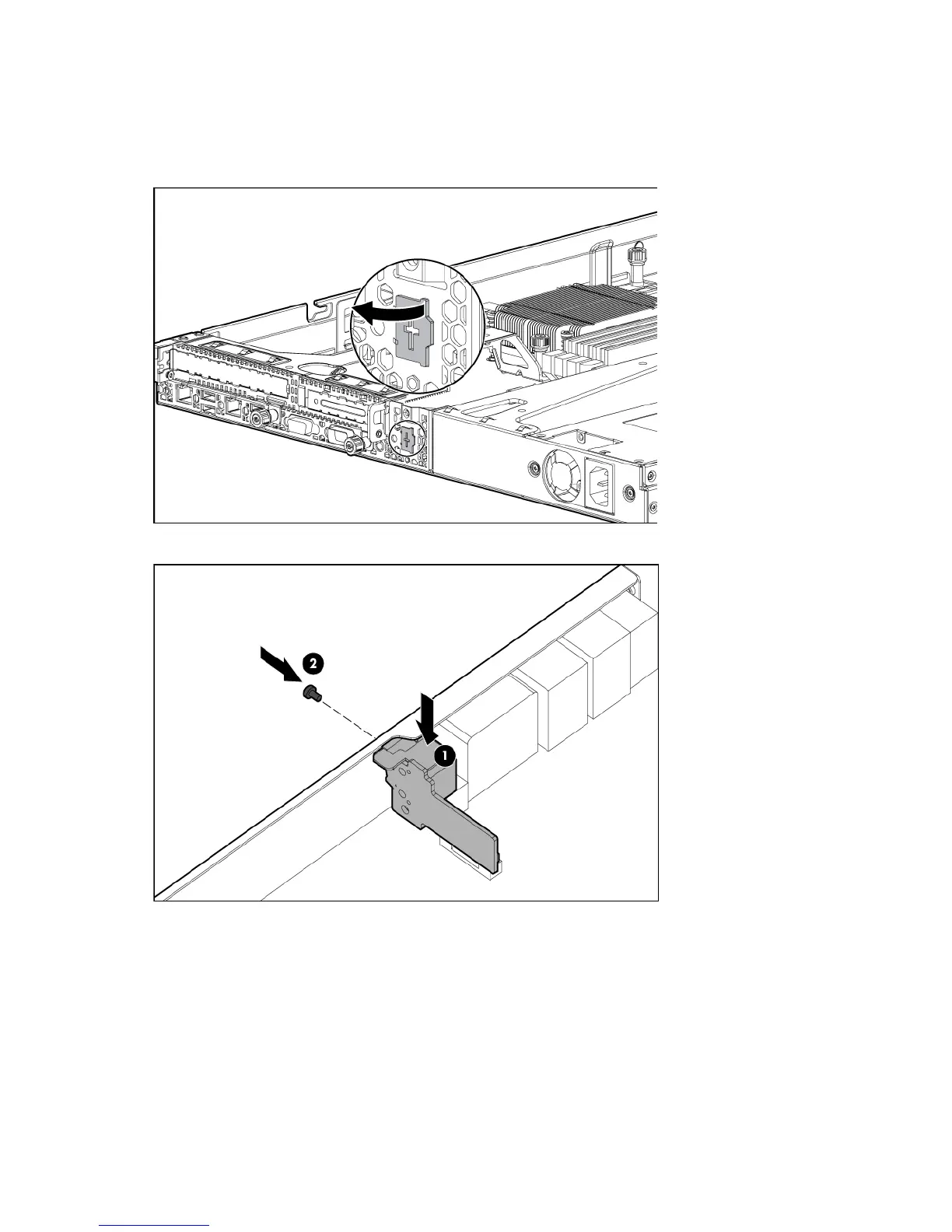

5. Using a flat screwdriver, toggle the knockout to loosen it, and then pull it out of the chassis.
6. Install the dedicated iLO management module.
7. Install the access panel (on page 19).
8. Do one of the following:
o Slide the server into the rack.
o Install the server into the rack ("Installing the server into the rack" on page 27).
9. Connect each power cord to the server.
10. Connect each power cord to the power source.
11. Power up the server (on page 16).
