QuickSpecs
HPE ProLiant DL380 Generation9 (Gen9)
Overview
Page 3

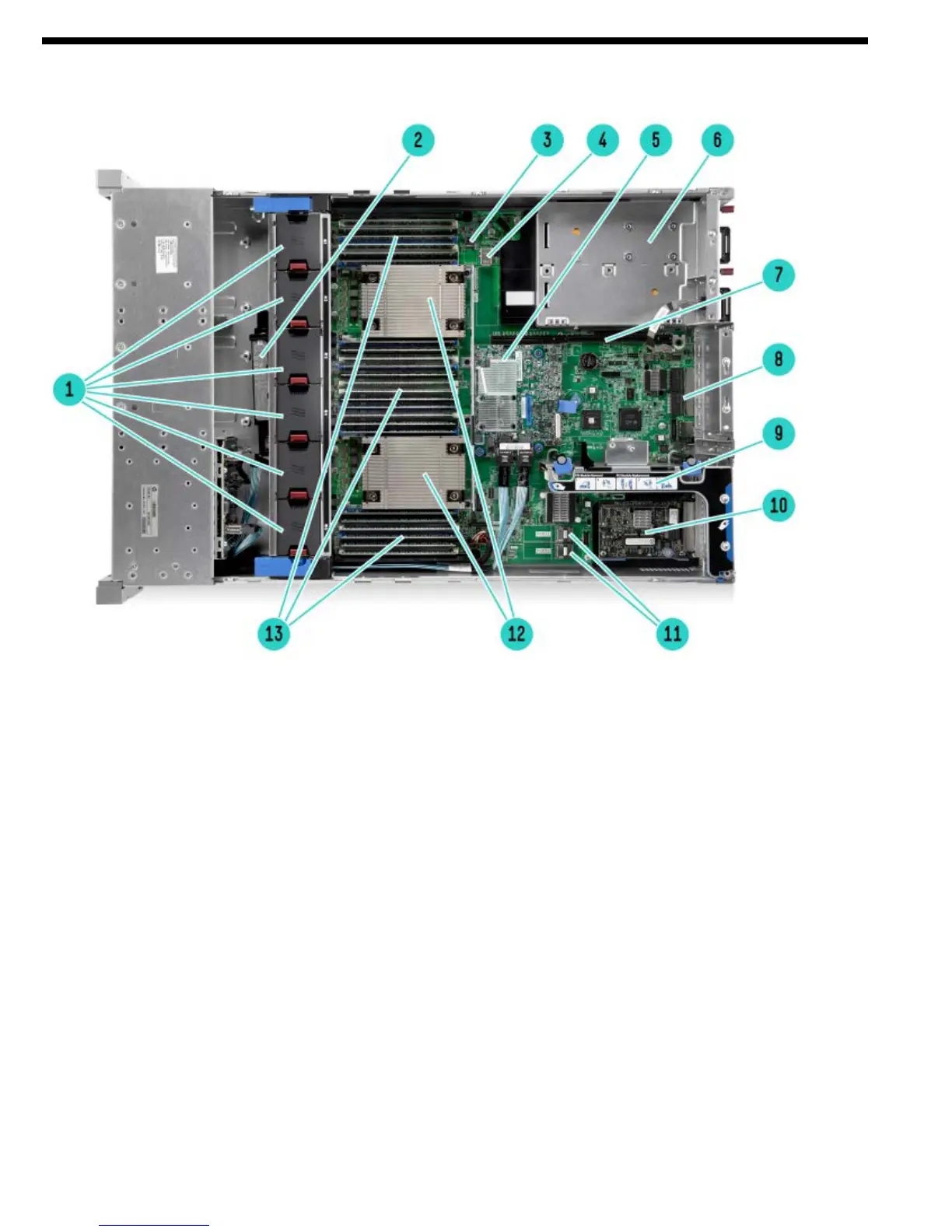

Internal View
1
Fan cage shown with 6 standard Hot-plug fans
(High Performance fans optional)
3
MicroSD card slot
NOTE:
Optional Dual MicroSD.
5
Optional HPE Flexible Smart Array or Smart HBA
(H240ar shown)
7
Connection for second (optional) riser (Required
second CPU)
9
Primary PCIe riser, standard (Optional double wide
GPU riser)
11
X4 SATA ports (1 and 2)
13
DDR4 DIMM slots. Shown fully populated in 24
slots (12 per processor)
2
Optional HPE Smart Storage Battery
4
Internal USB 3.0 connector (2)
6
(Under) Hot Plug redundant HPE Flexible Slot
Power supplies
NOTE: Optional Micro UPS option.
8
Embedded 4x1Gbe NIC
10
Optional Flexible LOM slot
12
2 Processors, heatsink showing, with HPE Smart
Socket Guide
What's New
• New NVIDIA Tesla M4/M40 new deep learning GPUs, plus RGS support
• New max capacity HDDs New LFF HDDs up to 10TB capacity
• New 10GbE FlexFabric NICs providing seamless performance upgrade from 1GbE and the economies of
10GbaseT

HP ProLiant DL380 Generation9 Specifications

General

Product Type	Server
Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4
Max Processors	2
Memory Slots	24 DIMM slots
Storage	Up to 12 LFF or 24 SFF drives
Drive Bays	12 LFF or 24 SFF
Storage Controller	HP Smart Array P440ar/2GB FBWC
RAID Support	0, 1, 5, 6, 10, 50, 60
Network	4 x 1GbE
Power Supply	1400W
Expansion Slots	Up to 6 PCIe 3.0
Remote Management	HP iLO
Operating System Support	Red Hat Enterprise Linux
Memory	Up to 3TB (24 x 128GB DDR4)
