Hardware options installation 36
7.

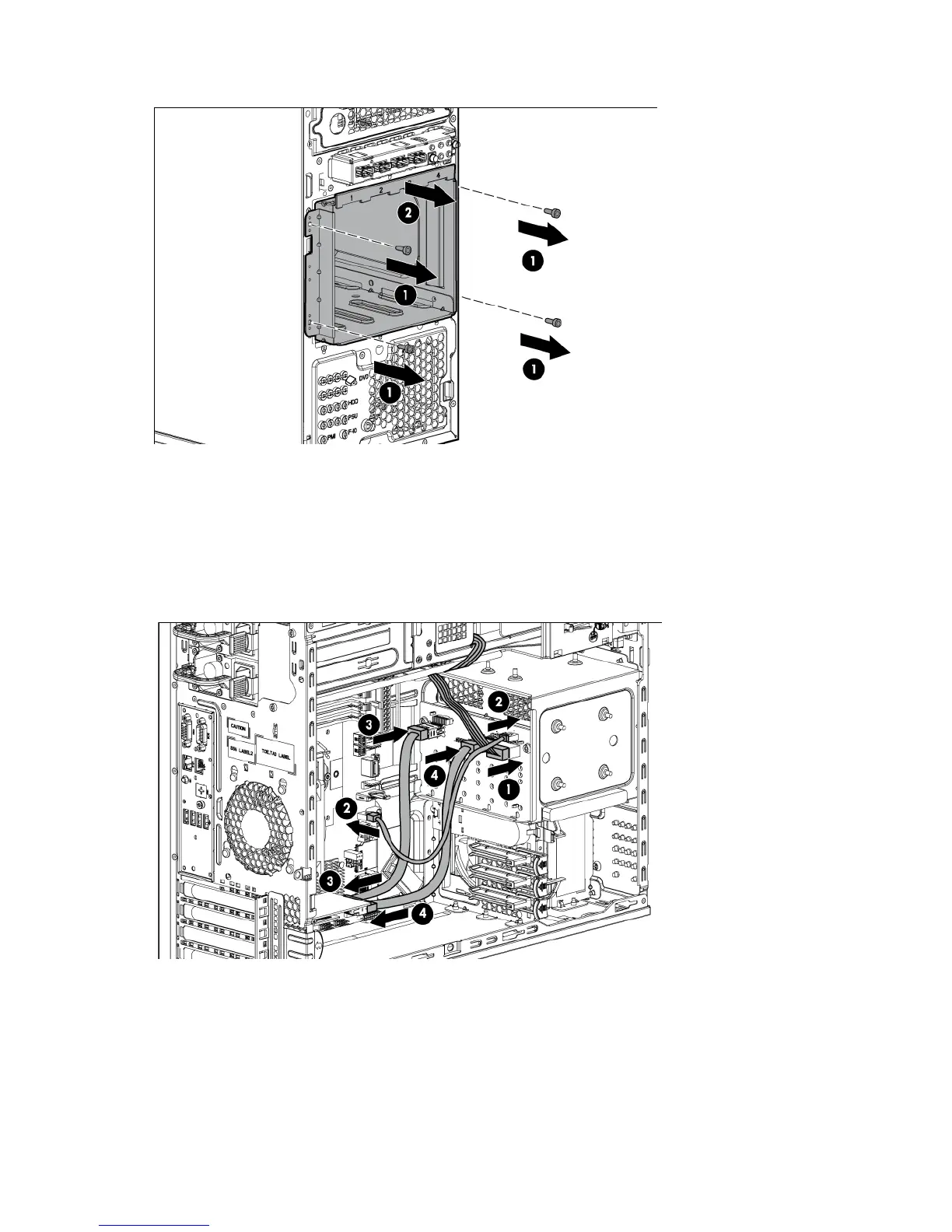

Using a T-15 Torx screwdriver, remove the four screws, and then remove the drive cage assembly.
8. Slide the SFF drive cage assembly partially into the server chassis.
9. Connect the drive backplane cables:
a. Connect the power cable to the backplane.
b. Connect the I
2
C cable.
c. Connect both Mini-SAS cables to the HP Smart Array SAS RAID controller card connector.
For cable routing information, see "Eight-bay SFF drive cabling (on page 62)."
