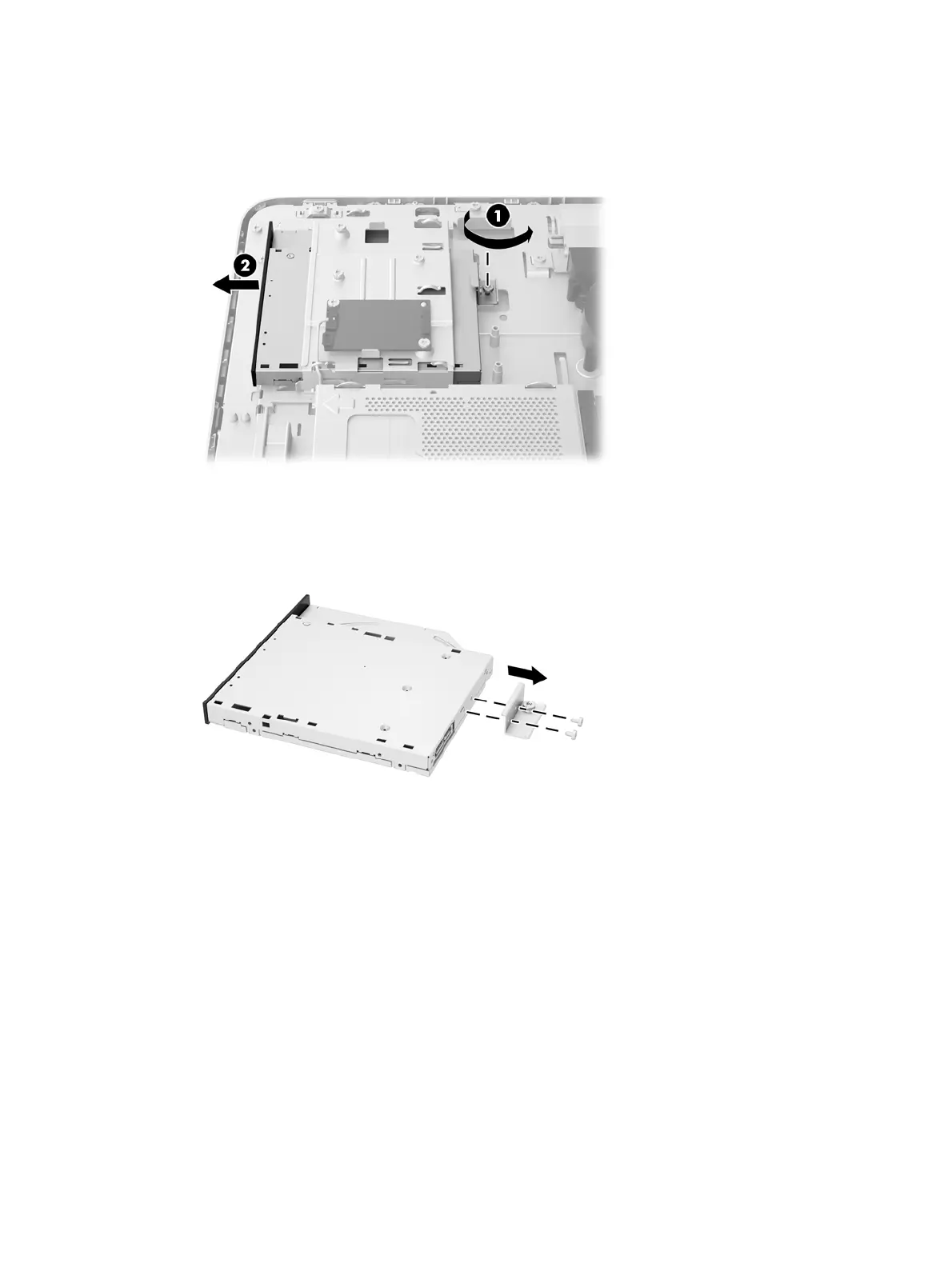

9. Slide the optical disc drive left (2) to remove it from the chassis.
Figure 3-44 Removing the optical disc drive
10. Remove the two screws attaching the optical disc drive bracket to the optical disc drive.
Figure 3-45 Removing the optical disc drive bracket
Replacing drives 45
