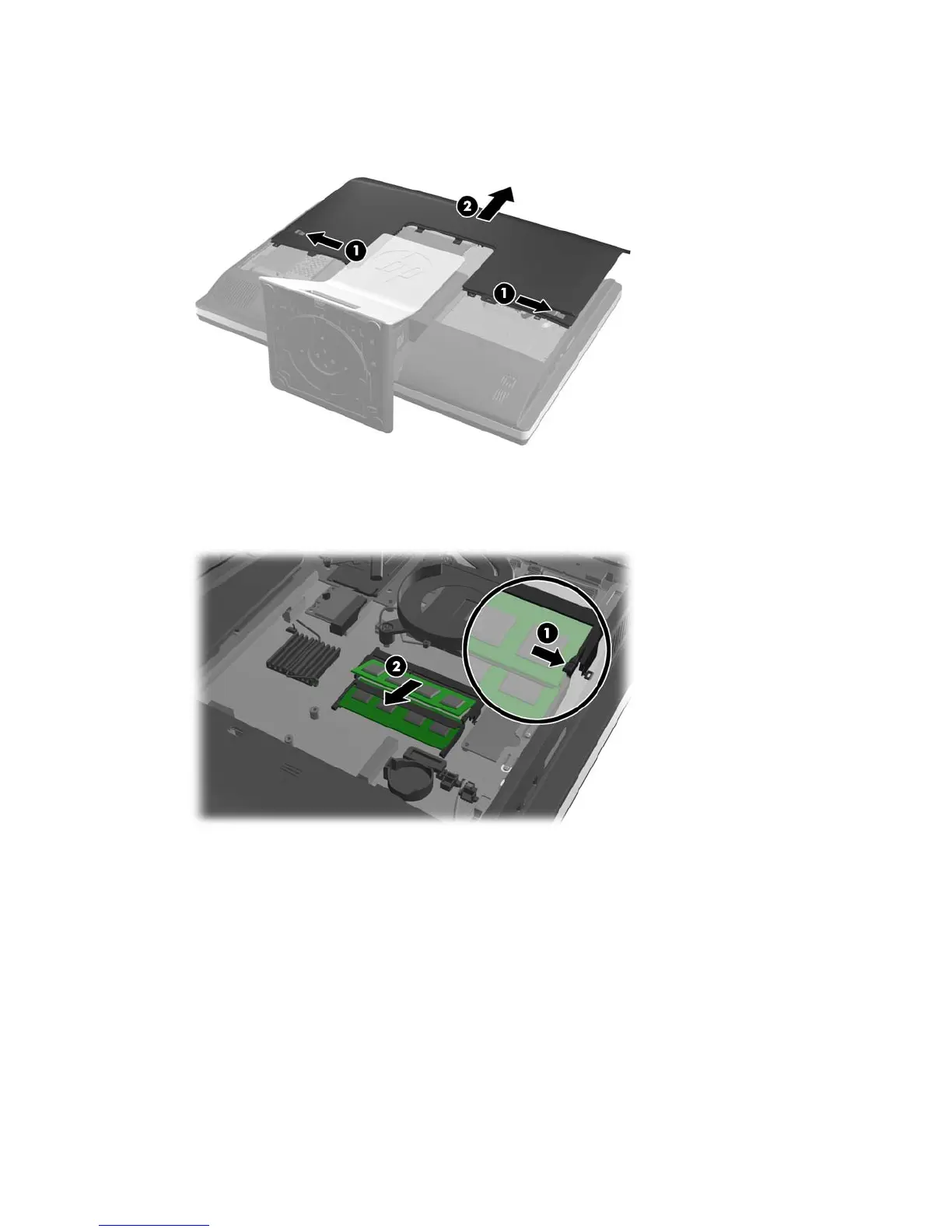

6. Slide the access panel latches toward the edges of the unit, then slide the access panel toward the
top of the computer until it slides off the unit.
Figure 2-26 Removing the access panel
7. To remove a memory module, press outward on the two latches on each side of the SODIMM (1),
then pull the SODIMM out of the socket (2).
Figure 2-27 Removing a memory module
30 Chapter 2 Hardware repair and upgrade
