8. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the
positive side up. Push the other edge down until the clamp snaps over the other edge of the
battery (2).

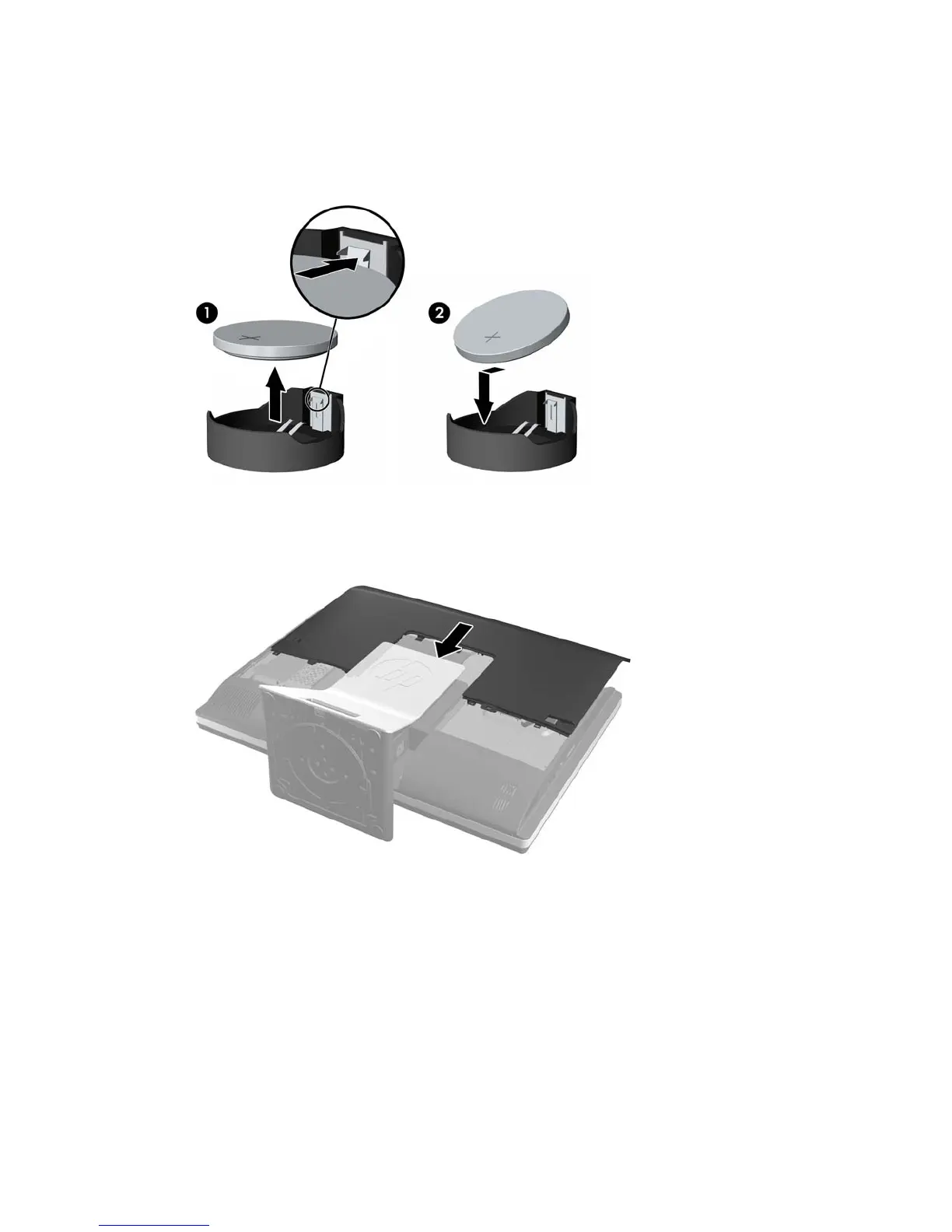

Figure 2-32 Removing and replacing a coin cell battery
9. To replace the access panel, set the panel on the back of the computer, slightly above the stand,
and slide it down into place.
Figure 2-33 Replacing the access panel
10. Reconnect the power cord and external devices.
11. Lock any security devices that were disengaged when the access panel was removed.
12. Place the computer in the upright position.
13. Turn on the computer.
14. Reset the date and time, your passwords, and any special system setups using Computer Setup.
34 Chapter 2 Hardware repair and upgrade
