8 HP Photosmart R-series dock User’s Manual

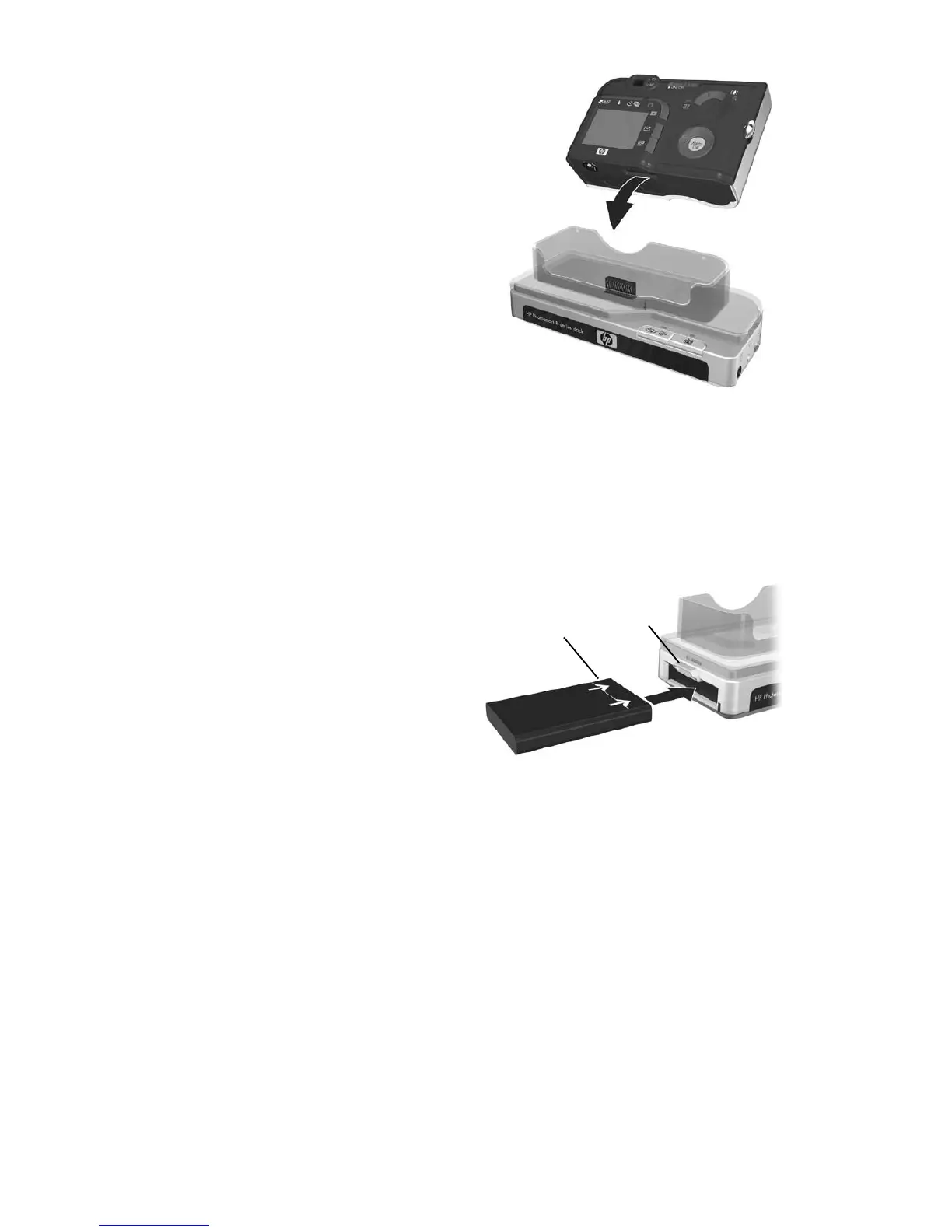

3 Remove any cables that may
be attached to your camera.
Then, insert the camera into the
camera dock as shown here.
The back of the camera must
point toward the edge of the
dock with the two buttons.
Charging a Spare
Battery
Insert a spare rechargeable lithium ion battery into the dock
recharging bay door with the arrows on the top of the battery
(1) pointing toward the door, as shown in the picture.
Push the battery into the
recharging bay until the slide
knob (2) snaps down. (The slide
knob must be pushed up to
remove the battery.) Make sure
the spare battery charging light
(see page 9) begins blinking.
Caution Read Battery Safety
Precautions on page 20 carefully before recharging lithium ion
batteries.
The first time that you use a rechargeable battery, be sure that
you charge it fully before using it in your camera. It may take
up to 2.5 hours to fully charge a new battery in the dock, or
3.5 hours to charge a fully depleted battery. You can charge a
battery in the camera while simultaneously charging a battery
in the dock, but the battery in the dock will charge more
quickly than the battery in the camera. (See Battery Charge
Times on page 20 for details.)
1
2
