HP S430c - Connector Repair Procedures; Main Board Connector Repairs Overview

16
Power board
The power board is adapter.
Connector repair
For Main Board
This procedure includes Phone Jack, HDMI, DisplayPort and DC Power Jack connectors.
The connectors are on the Main Board (board part number CBPRMEDH0Q3).
The connector identifiers are as follows:
Connector
Location
Phone Jack
CN601
HDMI
CN501
DP
CN551
DC Power Jack
CN701

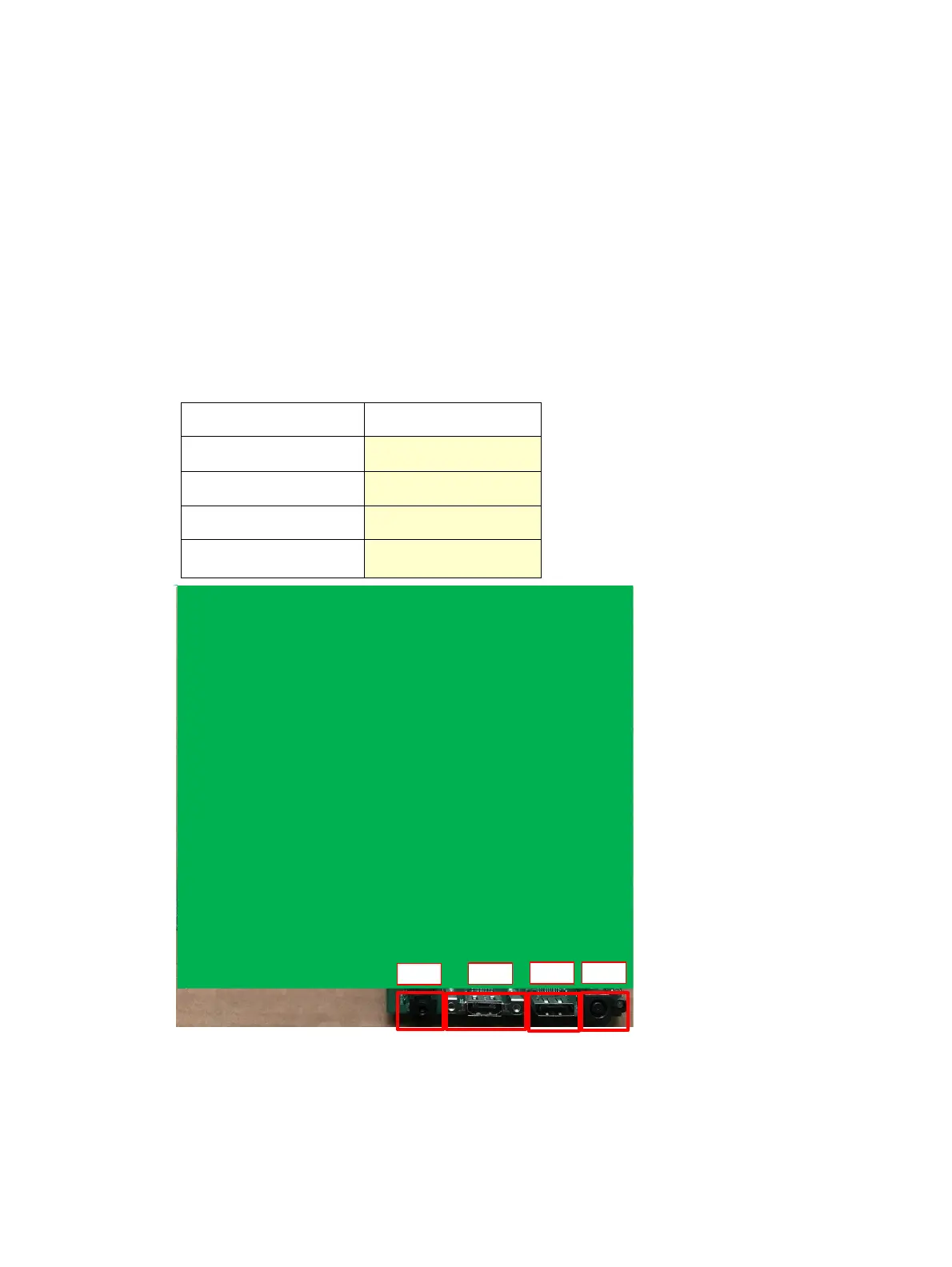

Main Board
CN601
CN501
CN551
CN701
