HP S430c - Main Board Connector Repair Details; Phone Jack Connector (CN601) Repair; HDMI Connector (CN501) Repair

19
For Main Board
Phone Jack connector CN601
Repair the Phone Jack connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the Phone Jack connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
HDMI connector CN501

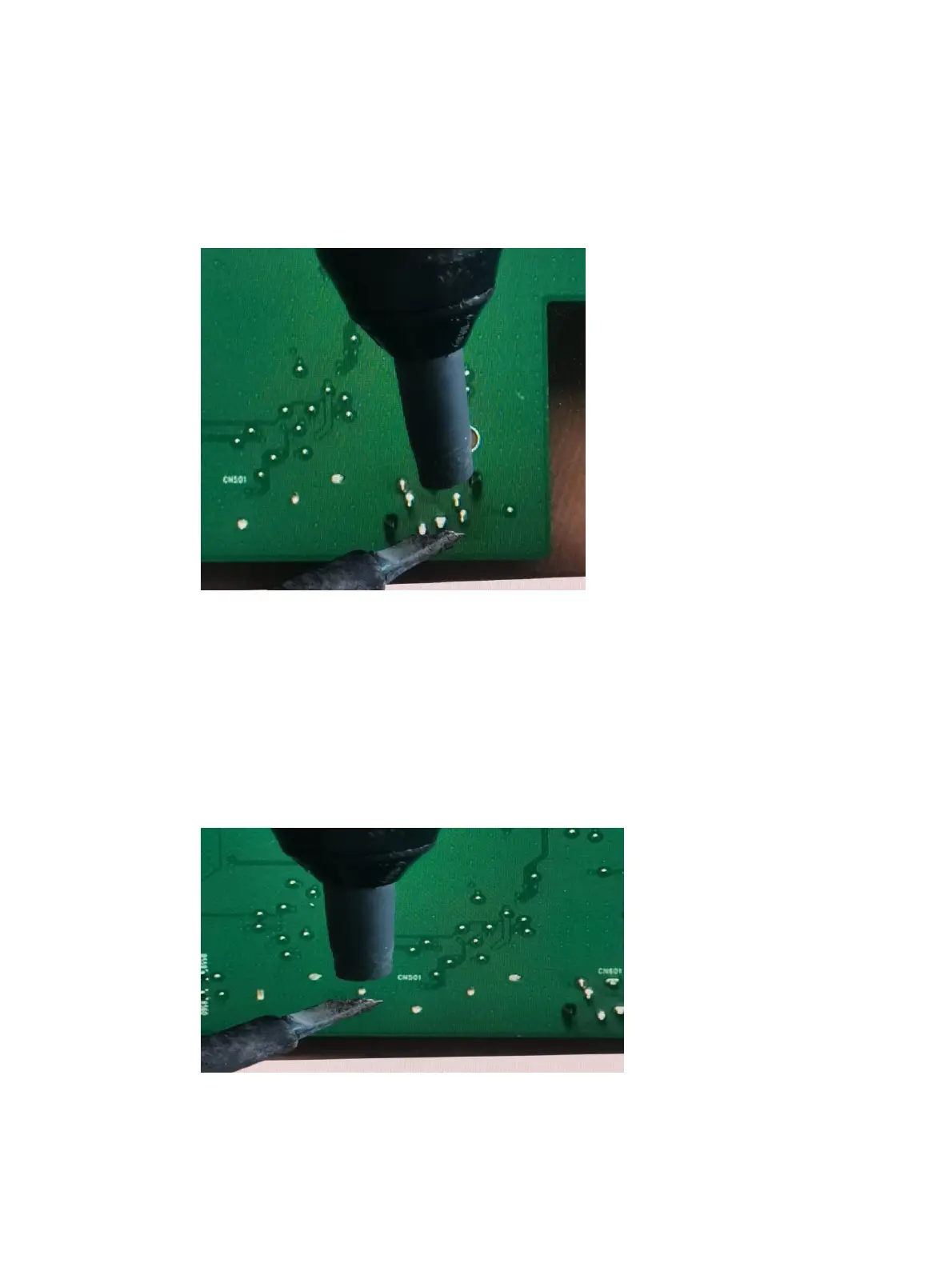

Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
