Reverse this procedure to install the speakers.

Vibrator module

NOTE: The vibrator module is included in the Speaker/Vibrator Module Kit, spare part number

751307-001. This kit includes the vibrator module and cable and the left and right speakers, cables,

and grommets. The vibrator module is also included with the system board spare part kit, spare part

number 751300-001.

Before removing the vibrator module, follow these steps:

1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,

and then shut it down through the operating system.

2. Disconnect the power from the tablet by unplugging the power cord from the tablet.

3. Disconnect all external devices from the tablet.

4. Remove the back cover (see

Back cover on page 12).

5. Remove the middle frame (see

Middle frame on page 14).

6. Remove the FPC cable (see

FPC cable on page 19).

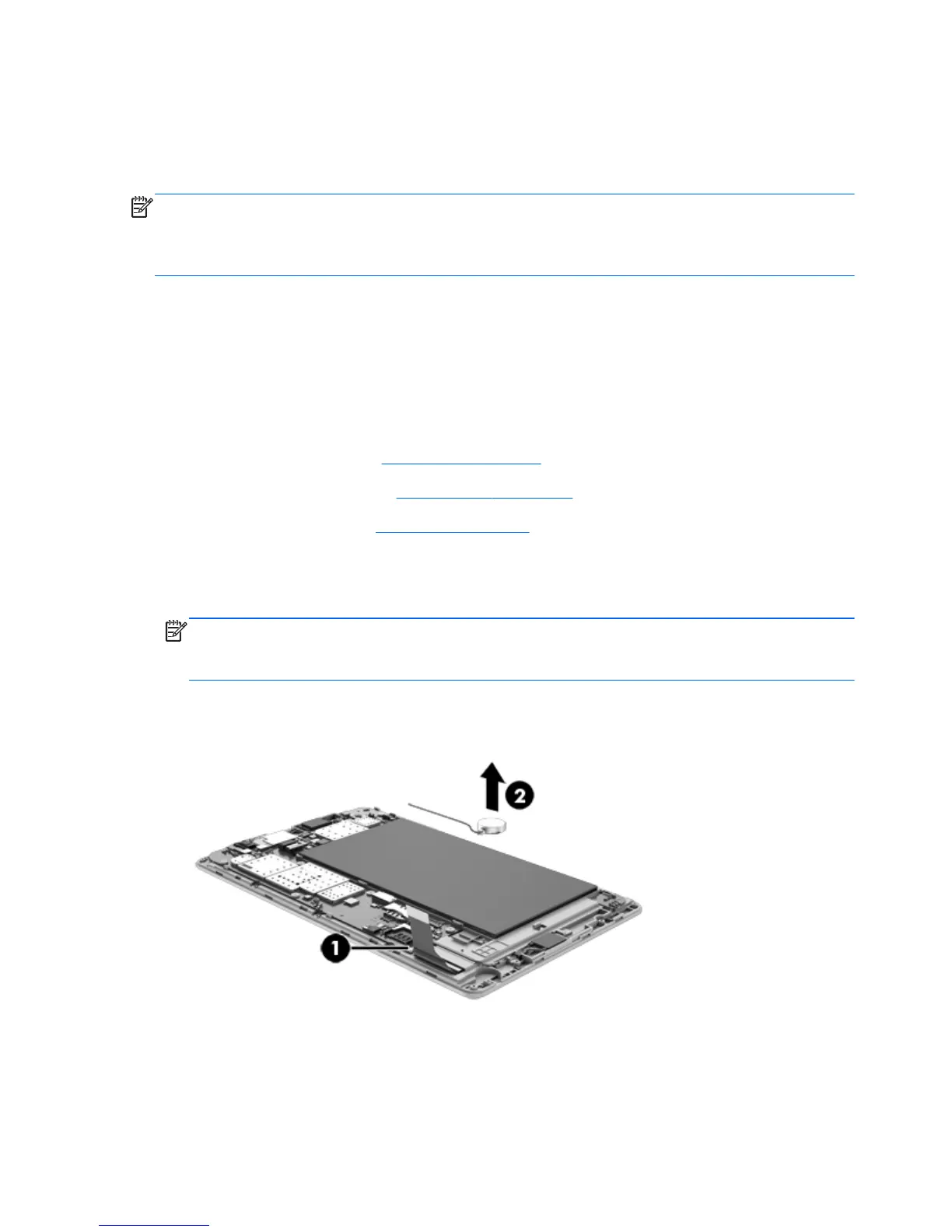

Remove the vibrator module:

1. Unsolder the vibrator module cables (1) from the system board terminals.

NOTE: When installing the vibrator module, the vibrator module red cable should be soldered

to the system board “+” terminal, and the vibrator module black cable should be soldered to the

“-” terminal.

2. Detach the vibrator module (2) from the display panel assembly. (The vibrator module is attached

to the display panel assembly with double-sided adhesive.)

Remove the vibrator module.

Reverse this procedure to install the vibrator module.

22 Chapter 5 Removal and replacement procedures
