Front-facing webcamera
Description Spare part number
2.0-MP front-facing webcamera (includes cable) 751308-001
Before removing the front-facing webcamera, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 12), and then remove the following components:
a. Middle frame (see
Middle frame on page 14)
b. FPC cable (see
FPC cable on page 19)
c.
System board (see
System board on page 23)

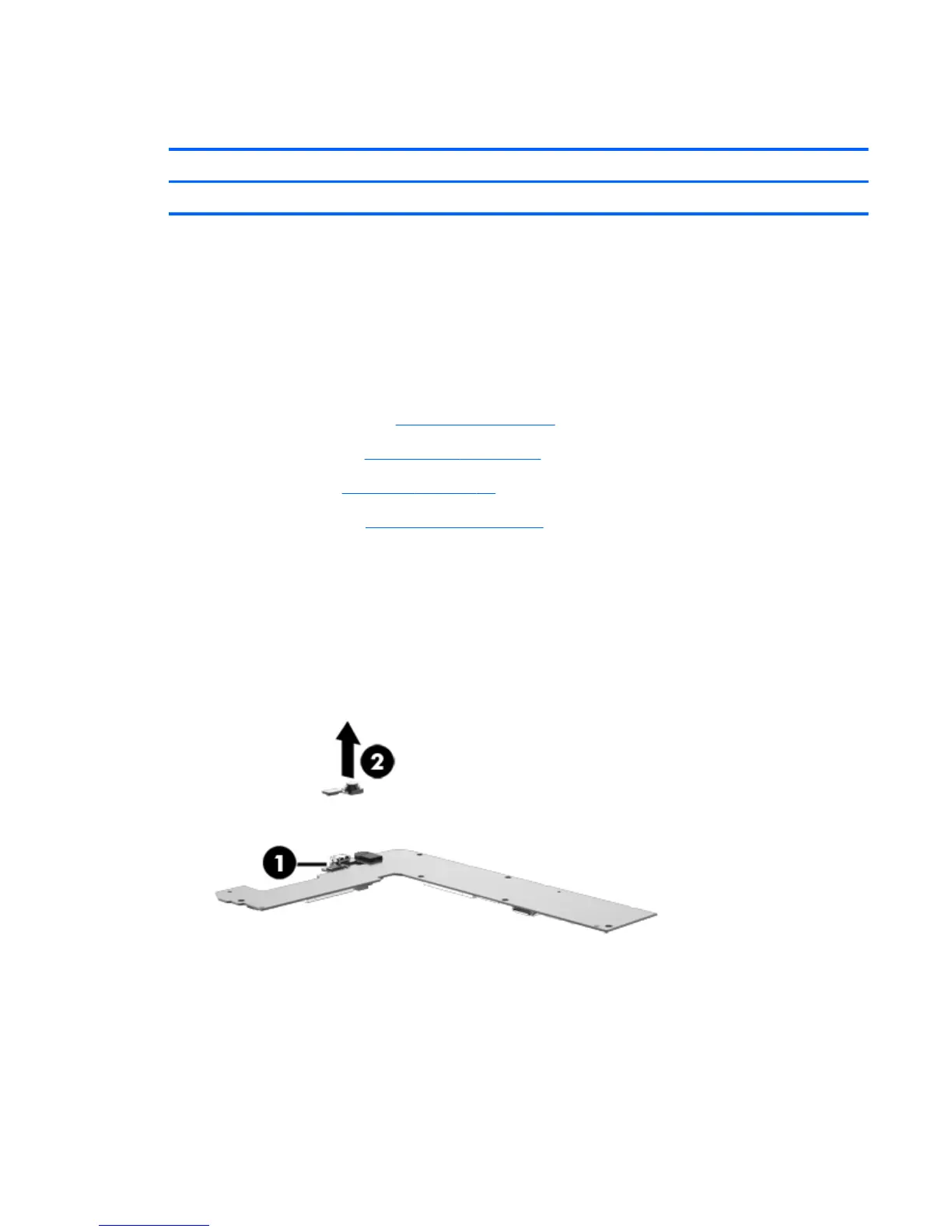

Remove the front-facing webcamera:
1. Turn the system board upside down with the top toward you.
2. Release the ZIF connector (1) to which the front-facing webcamera cable is attached, and then
disconnect the front-facing webcamera cable from the system board.
3. Remove the front-facing webcamera (2).
Reverse this procedure to install the front-facing webcamera.
