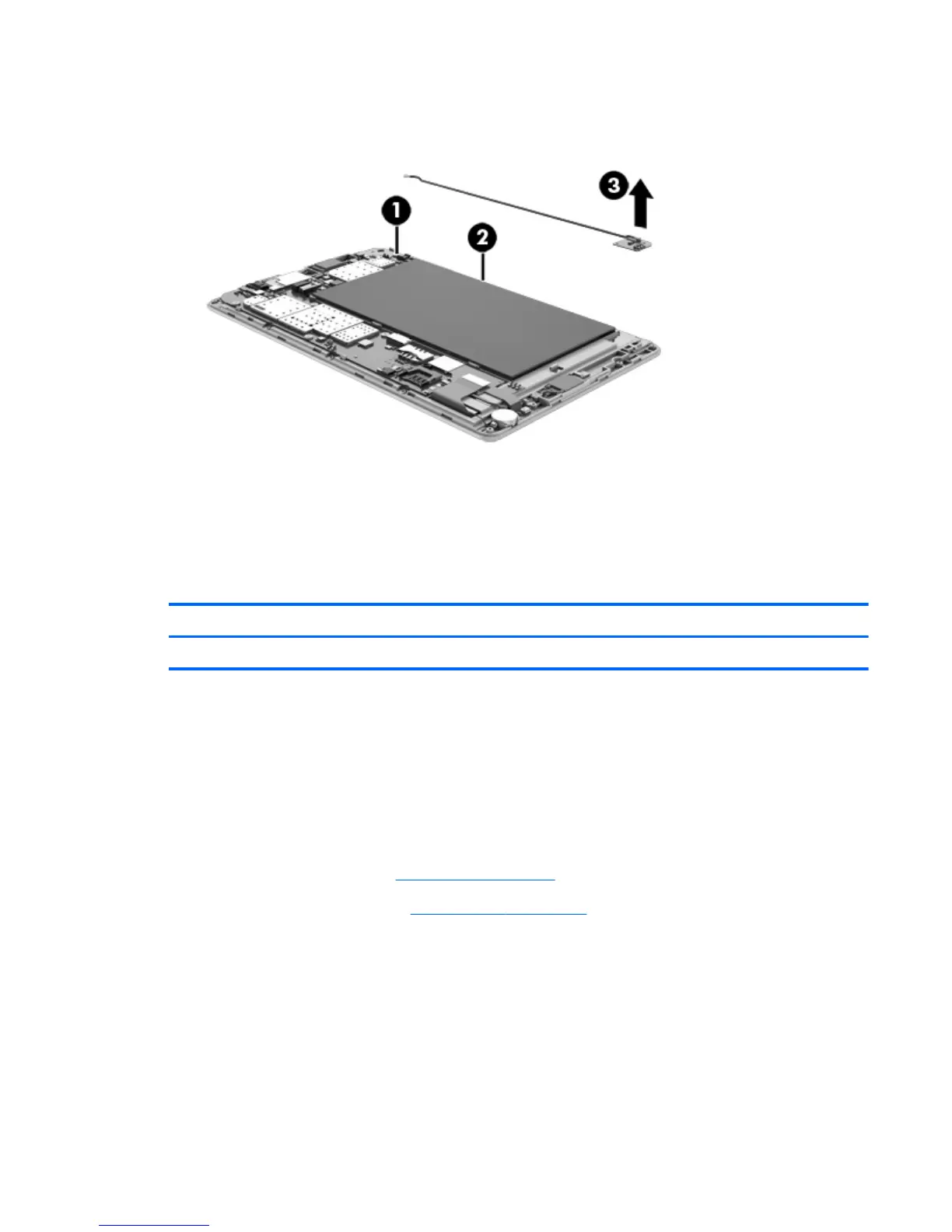

3.
Detach the WiFi antenna board (3) from the display panel assembly. (The WiFi antenna board is
attached to the display panel assembly with double-sided adhesive.)
4. Remove the WiFi antenna board and cable.
Reverse this procedure to install the WiFi antenna board.
FPC cable
Description Spare part number
FPC cable (includes double-sided adhesive) 751310-001
Before removing the FPC cable, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 12).
5. Remove the middle frame (see
Middle frame on page 14).
Remove the FPC cable:
1. Disconnect the display panel cable (1) from the FPC cable.
2. Disconnect the FPC cable (2) from the system board.
3. Detach the FPC cable (3) from the system board. (The FPC cable is attached to the system board
with double-sided adhesive.)
FPC cable
19
