Speakers
NOTE: The speakers are included in the Speaker/Vibrator Module Kit, spare part number
751307-001. This kit includes the left and right speakers, cables, and grommets and the vibrator
module and cable. The speakers are also included with the system board spare part kit, spare part
number 751300-001.
Before removing the speakers, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 12).
5.
Remove the middle frame (see
Middle frame on page 14).
6. Remove the FPC cable (see
FPC cable on page 19).

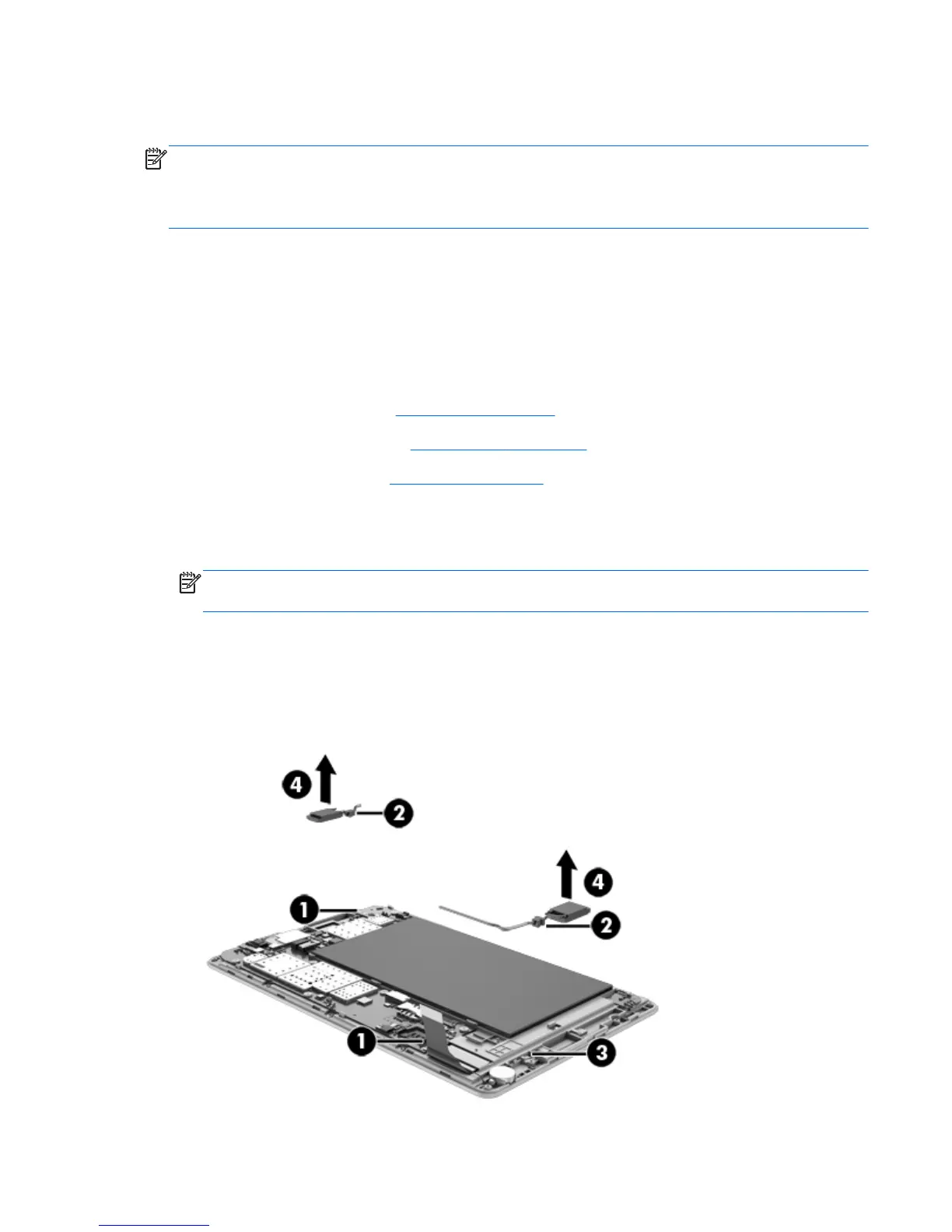

Remove the speakers:
1. Unsolder the speaker cables (1) from the system board terminals.
NOTE: When installing the speakers, the speaker red cables should be soldered to the system
board “+” terminals, and the speaker black cables should be soldered to the “-” terminals.
2. Release the speaker cable grommets (2) from the retention clips built into the
display panel assembly.
3. Release the right speaker cable (3) from the retention clip built into the display panel assembly.
4. Remove the speakers (3).
Speakers
21
