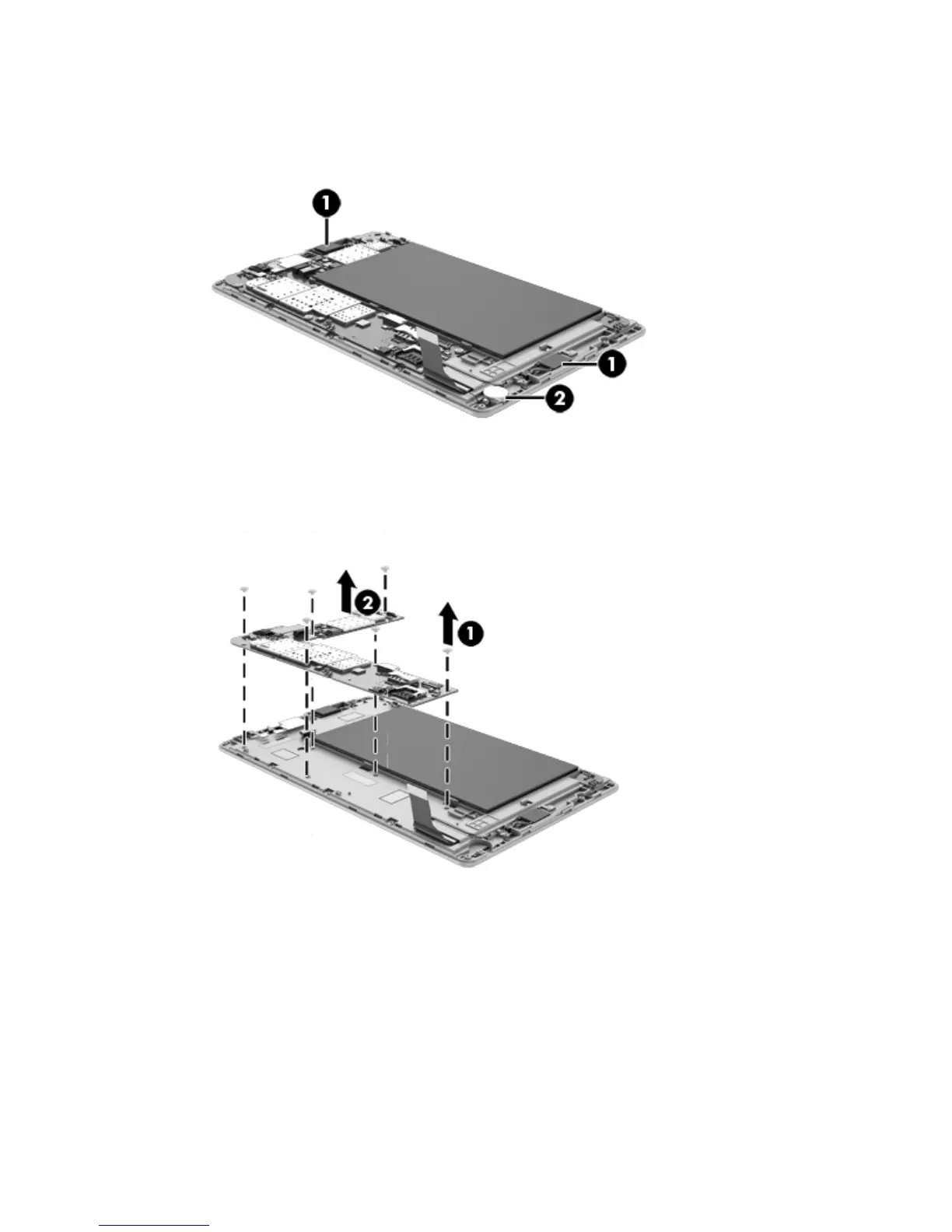

Detach the speakers (1) and the vibrator module (2) from the display panel assembly.

(The speakers and the vibrator module are attached to the display panel assembly with double-

sided adhesive.)

3. Remove the six Phillips PM1.35×1.75 broad head screws (1) that secure the system board to the

display panel assembly.

4. Remove the system board (2).

Reverse this procedure to install the system board.

24 Chapter 5 Removal and replacement procedures
