HP Smart Array P830 User Manual

Component identification 6

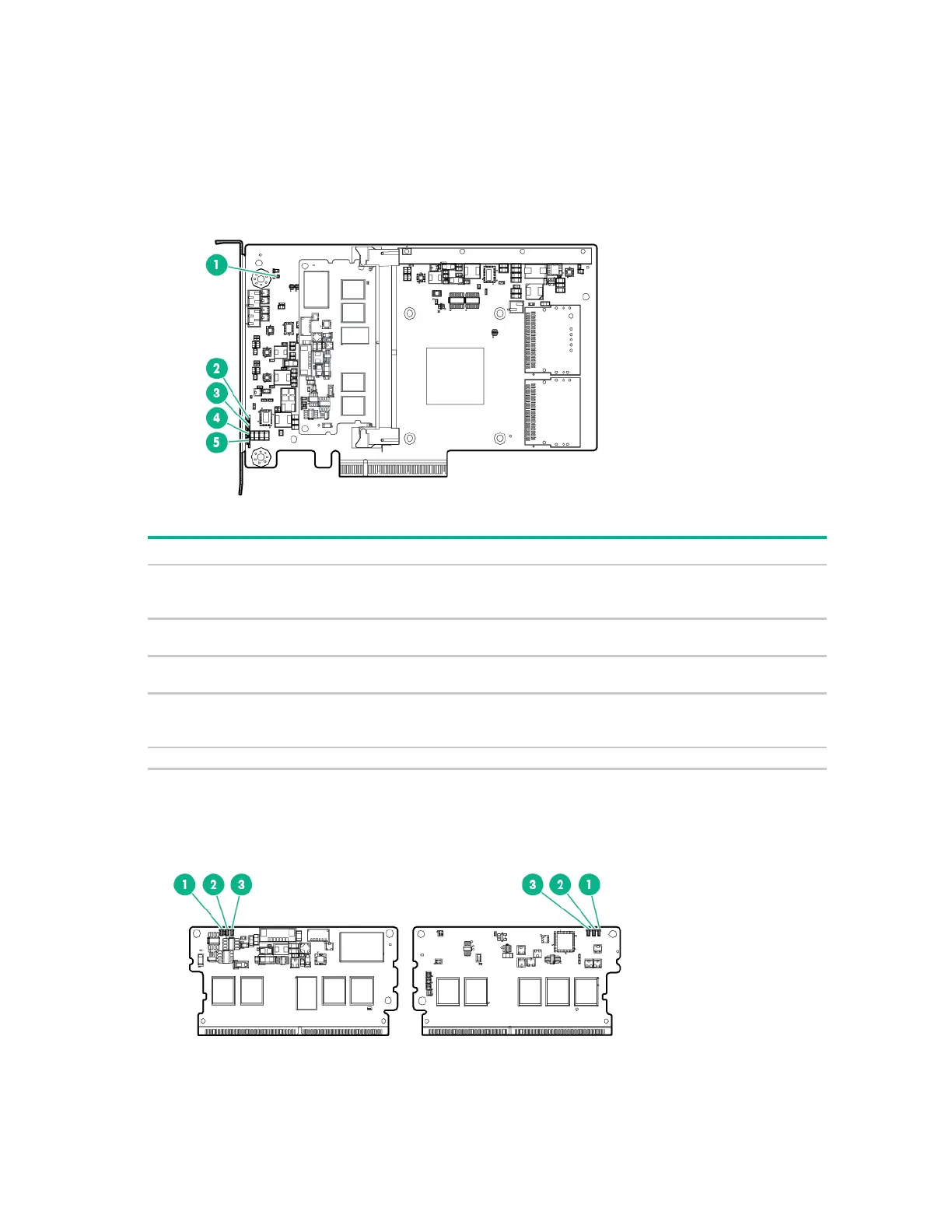

Controller LEDs
Immediately after you power up the server, the controller runtime LEDs illuminate briefly in a
predetermined pattern as part of the POST sequence. At all other times during server operation, the
illumination pattern of the runtime LEDs indicates the status of the controller.
Item Color Name Interpretation
1
Amber
Debug
On = Controller is in reset state.
Off = Controller is in an idle or runtime state.
Flashing 5 Hz = Controller and cache are performing a backup.
2
Amber
Fault
When an error occurs, this LED is on. During power up, this
LED is solid for up to 2 seconds.
3
Green
Heartbeat
When the controller is in good health, this LED flashes at 1 Hz.
During power up, this LED is solid for up to 2 seconds.
4
Green
Crypto
On = Encrypting
Off = Non-encrypting
Flashing = Undergoing retry
5
Green
Reserved
—
Cache module LEDs
