HP StorageWorks P2000 G3 MSA System FC User Guide 27

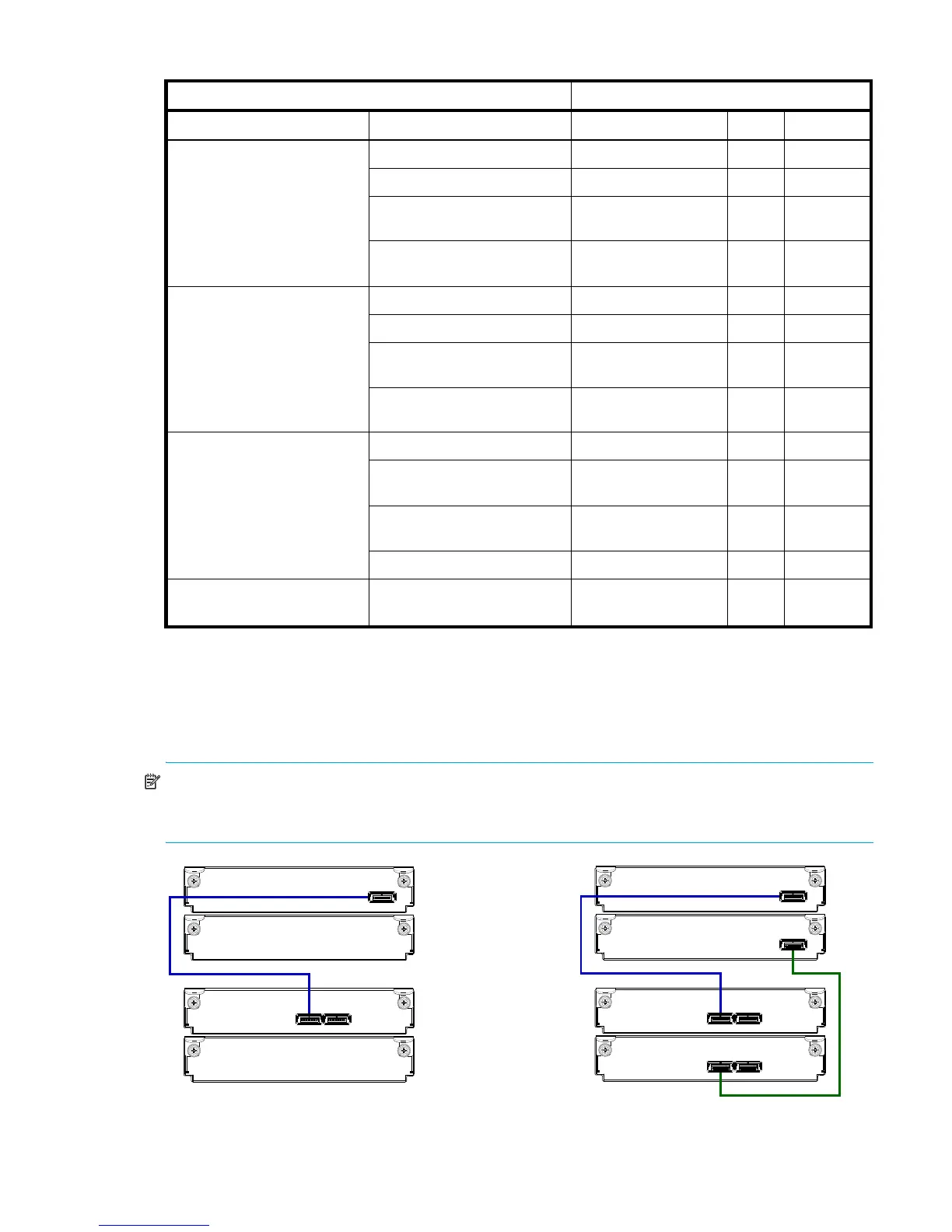

Table 4 SAS expansion cable requirements: expansion-to-expansion module connection
1
One 0.5m cable required per I/O module to I/O module connection.
2
Cables required, if not included, must be separately purchased.
3
One 0.6m cable required per I/O module to I/O connection.
4
When adding more than two drive enclosures, you may need to purchase additional 1m or 2m cables:
- Spanning 3, 4, or 5 drive enclosures requires 1m cables
- Spanning 6 or 7 drive enclosures requires 2m cables
NOTE: For clarity, the schematic illustrations of controller and expansion modules shown in this section
provide only relevant details such as expansion ports within the module face plate outline. For detailed
illustrations showing all components, see Rear panel components on page 19.
Figure 2 Cabling connections between P2000 G3 MSA System controllers and P2000 6Gb drive
enclosures
Product model-to-model storage component attachment SAS expansion (In/Out) cable data
Expansion module Expansion module Type Length Connectors
P2000 6Gb drive enclosure
P2000 6Gb drive enclosure mini-SAS to mini-SAS
1
0.5m 6Gbps
D2700 6Gb drive enclosure mini-SAS to mini-SAS
1
0.5m 6Gbps
MSA70 3Gb drive enclosure mini-SAS to mini-SAS
1, 2
0.5m 6Gbps
3Gbps
MSA2000 3Gb drive enclosure mini-SAS to SAS
1, 2
0.6m 6Gbps
3Gbps
D2700 6Gb drive enclosure
D2700 6Gb drive enclosure mini-SAS to mini-SAS
1
0.5m 6Gbps
P2000 6Gb drive enclosure mini-SAS to mini-SAS
1, 2
0.5m 6Gbps
MSA2000 3Gb drive enclosure mini-SAS to SAS
1, 2
0.5m 6Gbps
3Gbps
MSA70 3Gb drive enclosure mini-SAS to mini-SAS
1, 2
0.5m 6Gbps
3Gbps
MSA70 3Gb drive enclosure
MSA70 3Gb drive enclosure mini-SAS to mini-SAS
1
0.5m 3Gbps
P2000 6Gb drive enclosure mini-SAS to mini-SAS
1
0.5m 3Gbps,
6Gbps
D2700 6Gb drive enclosure mini-SAS to mini-SAS
1
0.5m 3Gbps,
6Gbps
MSA2000 3Gb drive enclosure mini-SAS to SAS
1
0.6m 3Gbps
MSA2000 3Gb drive
enclosure
MSA2000 3Gb drive enclosure SAS to SAS
3
0.6m 3Gbps
In Out
1B
1A
2A
2B
Controller A
In Out
1B
1A
2A
2B
Controller A
Controller B
In Out
