32 Installing the enclosures

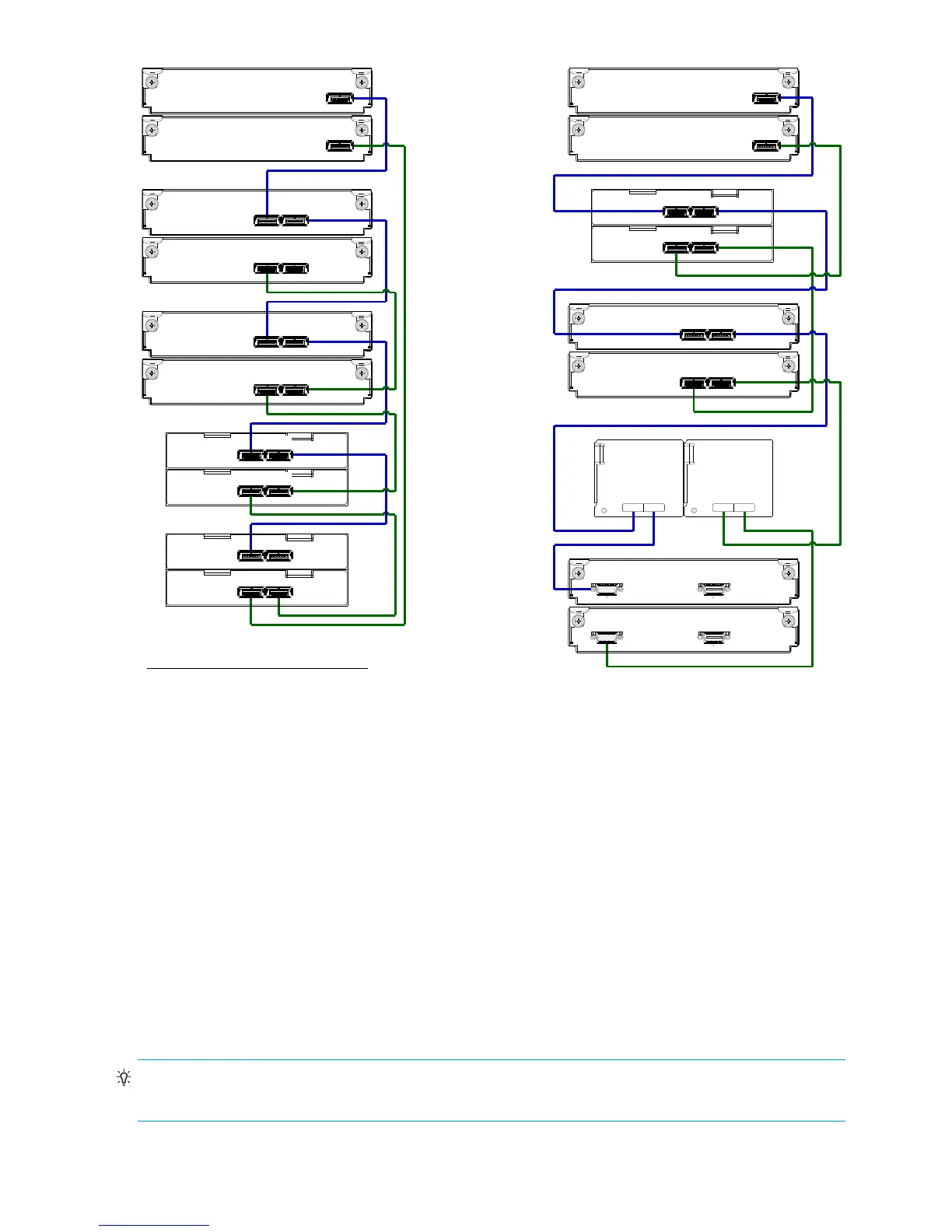

Figure 10 Cabling connections between dual controllers and mix-connect drive enclosures
The figure above shows a sample fault-tolerant mixed-connect cabling scenario on left, and a
straight-through mixed-connect cabling scenario on right. When cabling supported drive enclosures in
mixed-connect environments, be mindful of the constraints concerning components equipped with SAS2.0
and SAS1.1 expanders, respectively (see Mixed-connect cabling considerations on page 26).
In the illustration on the left, note that the D2700 6Gb drive enclosures could alternatively be cabled ahead
of the P2000 6Gb drive enclosures. The illustration at the right shows a cabling progression featuring a
D2700 6Gb drive enclosure followed by a P2000 6Gb drive enclosure, MSA70 3Gb drive enclosure, and
MSA2000 3Gb drive enclosure. It is important to note that the MSA2000 3Gb drive enclosure follows the
other drive enclosures, and that the straight-through cabling method is used.
Although 6Gbps drive enclosures can be cabled behind a 3Gbps rated MSA70 3Gb drive enclosure,
performance of the 6Gbps devices will be limited, as link rate speeds will be throttled-down to 3Gbps.
TIP: For comprehensive configuration options and associated illustrations, see the HP StorageWorks
P2000G3MSA System Cable Configuration Guide.
1B
1A
Controller B
Controller A
Out
In
Out
In
3B
3A
P1
P1
4B
4A
P2
P2
P2
P2
P1
P1
5B
5A
2B
2A
Out
In
Out
In
Controller B
Controller A1A
1B
5B
5A
Fault-tolerant cabling
Straight-through cabling
In
In
Out
Out
4A 4B
P1
P1
P2
P2
3B
3A
OutIn
In
In
Out
Out
2B
2A
OutIn
2
1
3
4
1
1
2
2
= P2000 6Gb drive enclosure
1
= D2700 6Gb drive enclosure
2
= MSA70 3Gb drive enclosure
3
= MSA2000 3Gb drive enclosure
4
Drive enclosure IOM face plate key:
