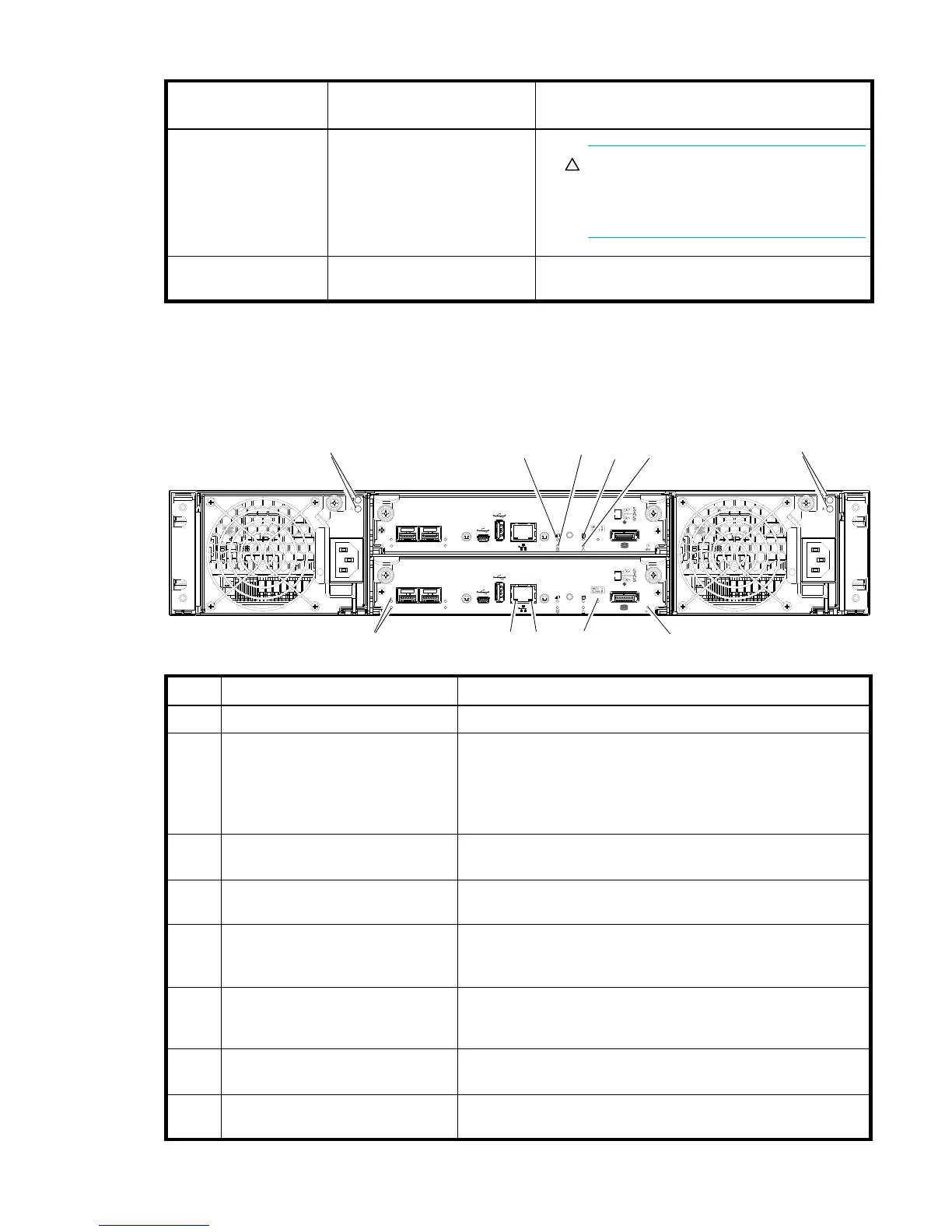

Rear panel LEDs
P2000 G3 MSA System FC SFF and P2000 G3 MSA System FC LFF
Blinking regularly (1 Hz) Off
CAUTION: Do not remove the drive.
Removing a drive may terminate the current
operation and cause data loss. The drive is
rebuilding.
Off Off Either there is no power, the drive is offline, or the
drive is not configured.
1. This Fault/UID state can indicate that the disk is a leftover. The fault may involve metadata on the disk, rather than the disk itself.
See the Clearing disk metadata topic in the reference guide or SMU online help.
Table 13 Disk drive LED combinations (continued)
Online/Activity
(green)
Fault/UID (amber/blue) Description
LED Description Definition
1 Power supply LEDs See Power supply LEDs on page 63.
2 Host 2/4/8 Gb FC))
Link Status/
Link Activity
Green — The port is connected and the link is up.
2,4G LED illuminates — link speed is 2 or 4-Gbps
8G LED illuminates — link speed is 8-Gbps
Both LEDs off — link speed is 1-Gbps
1
Blink — no link detected
3 OK to Remove Off — The controller module is not prepared for removal.
Blue — The controller module is prepared for removal.
4 Unit Locator Off — Normal operation.
Blinking white — Physically identifies the controller module.
5 FRU OK Off — Controller module is not OK.
Blinking green — System is booting.
Green — Controller module is operating normally.
6 Fault/Service Required Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
7 Network Port Link Status Off — The Network port is not connected or the link is down.
Green — The Network link is up.
8 Network Port Activity Off — The Ethernet link has no I/O activity.
Blinking green — The Ethernet link has I/O activity.
