HP Stream 14 User Manual

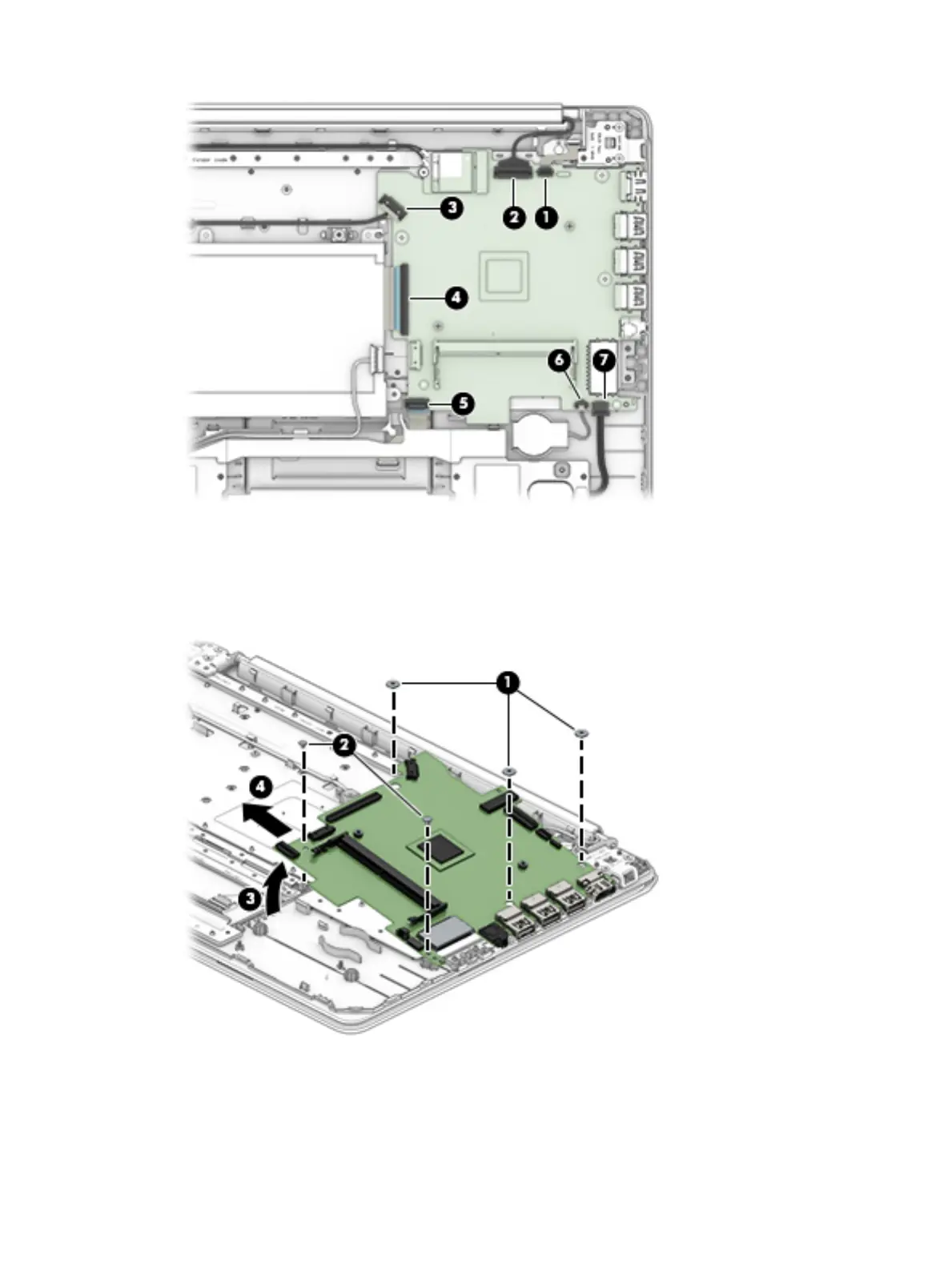

2. Remove the three black Phillips M2.0 × 2.5 screws (1) that secure the system board to the computer.
3. Remove the two silver Phillips M2.0 × 2.5 screws (2) that secure the system board to the computer.
4. Lift up the left side of the system board (3), and then pull the system board toward the left to remove it
from the computer (4).
Reverse this procedure to install the system board.
34 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts

HP Stream 14 Specifications

General

Display Size	14 inches
RAM	4 GB
Resolution	1366 x 768
Processor	Intel Celeron N4000
Storage	64 GB eMMC
Operating System	Windows 10 Home in S mode
Battery Life	Up to 14 hours
Weight	1.44 kg
Graphics	Intel UHD Graphics 600
Wireless	802.11ac
Bluetooth	Bluetooth 4.2
Ports	1 x HDMI, 1 x headphone/microphone combo, 1 x microSD card reader
Battery	41 Wh Li-ion
Dimensions	33.7 x 22.6 x 1.8 cm
