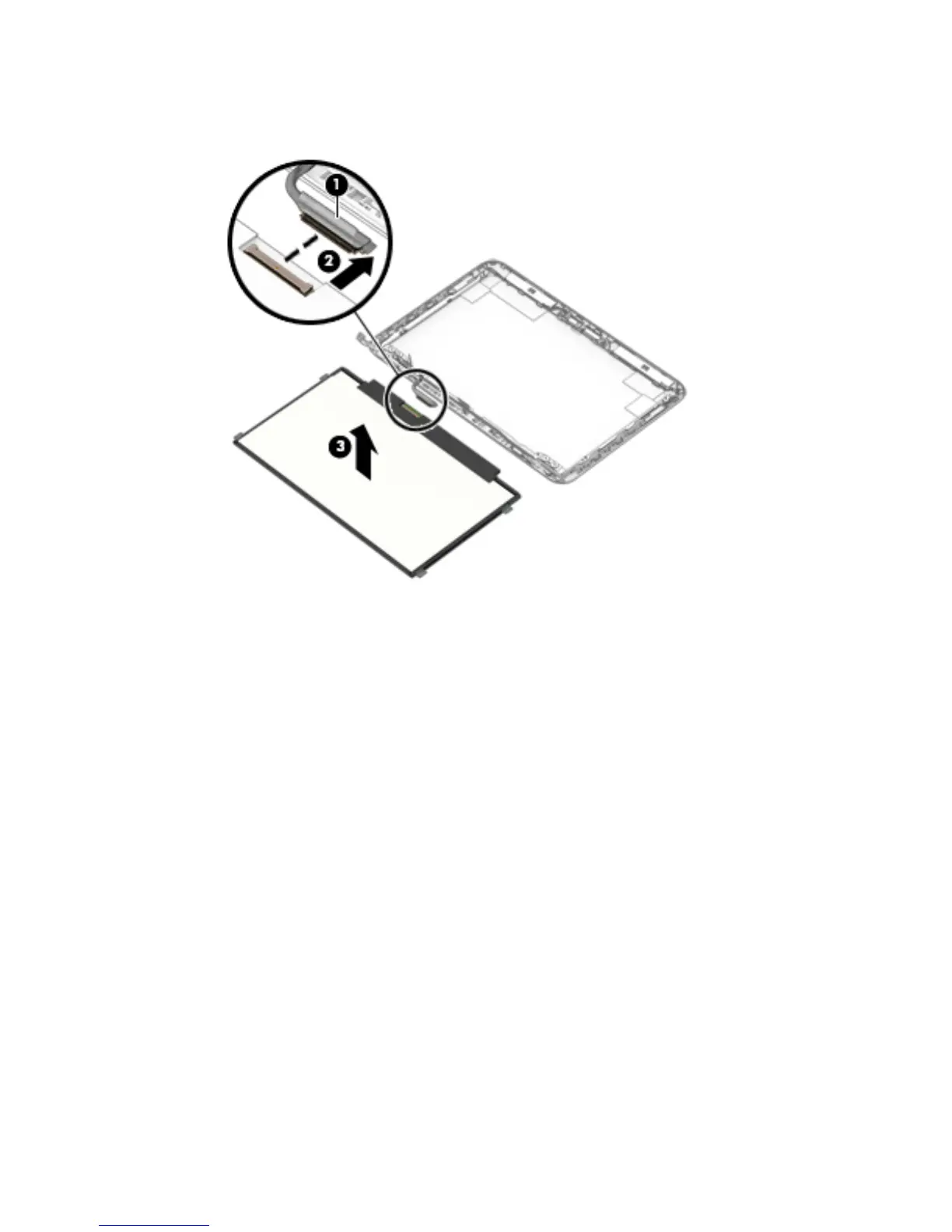

f. Remove the display panel (3).
The display panel is available using spare part number 792896-001.
9. If it is necessary to replace the display panel cable:
a. Remove the display panel.
b. Disconnect the display panel cable from the webcam/microphone module.
c. Release the display panel cable from the retention clips (1) and routing channel built into the top
edge and left side of the display enclosure.
50 Chapter 5 Removal and replacement procedures
