HP Stream Maintenance And Service Guide

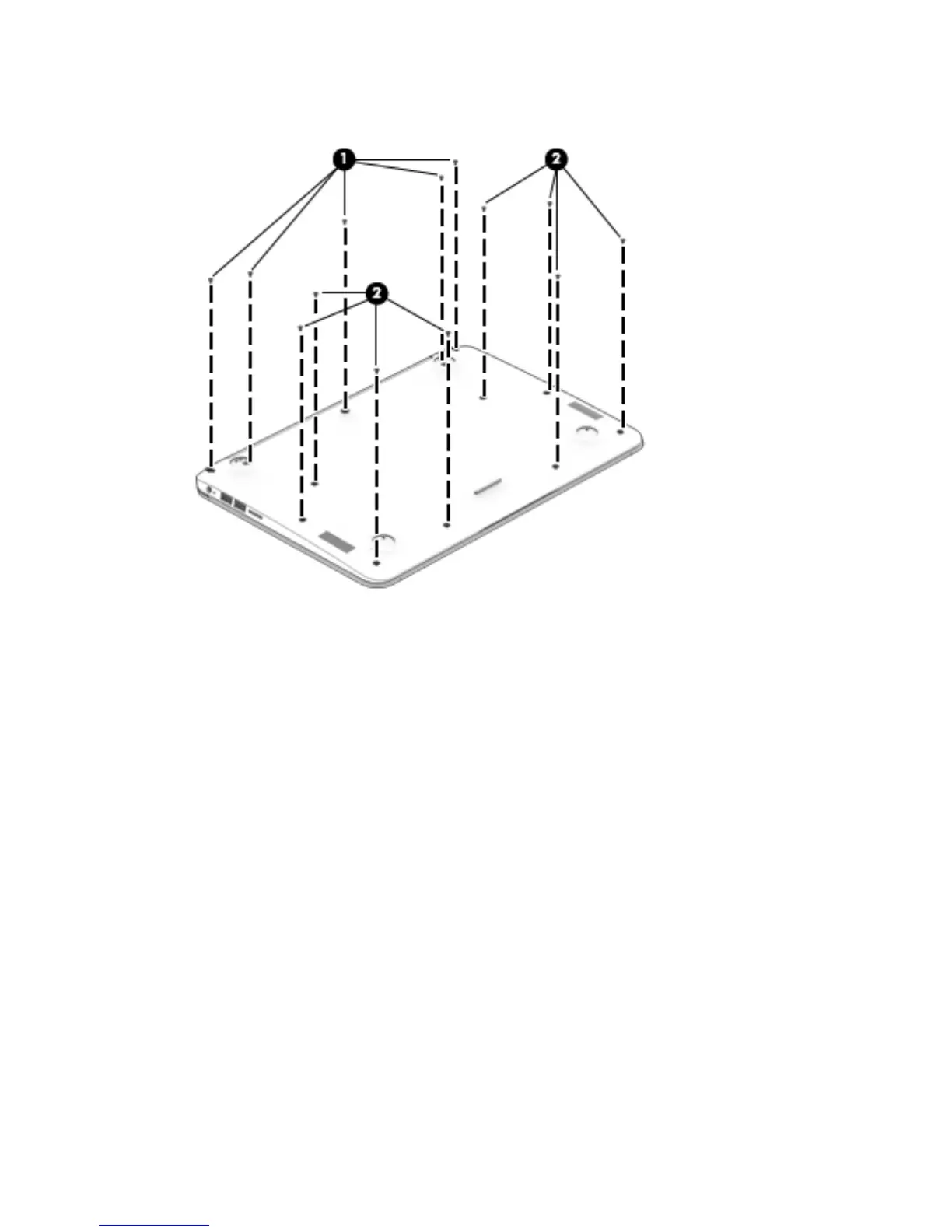

6. Remove the five Phillips PM1.9×5.7 screws (1) and eight Phillips PM1.9×4.3 screws (2) that secure the
keyboard/top cover to the base enclosure.
7. Turn the computer right side up.
8. Open the computer as far as it will open.
9. Detach the front edge of the keyboard/top cover (1) from the base enclosure.
10. Lift the keyboard/top cover (2) until it rests at an angle.
11. Disconnect the battery cable (3) from the system board.
12. Release the zero insertion force (ZIF) connector (4) to which the power button board cable is attached,
and then disconnect the power button board cable from the system board.
13. Release the ZIF connector (5) to which the keyboard cable is attached, and then disconnect the
keyboard cable from the system board.
14. Release the ZIF connector (6) to which the TouchPad board cable is attached, and then disconnect the
TouchPad board cable from the system board.
22 Chapter 4 Removal and replacement procedures for Authorized Service Provider parts

HP Stream Specifications

General

Audio	Dual speakers
Memory	4GB DDR4
Storage	64 GB eMMC
Graphics	Intel UHD Graphics 600
Display	HD (1366 x 768)
Wireless	Bluetooth 4.2
Weight	1 to 1.2 kg
Color	Royal Blue
Ports	headphone/microphone combo
