Power connector cable
Component Spare part number
Power connector cable 759919-001
Before replacing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the keyboard/top cover (see
Keyboard/top cover on page 19).

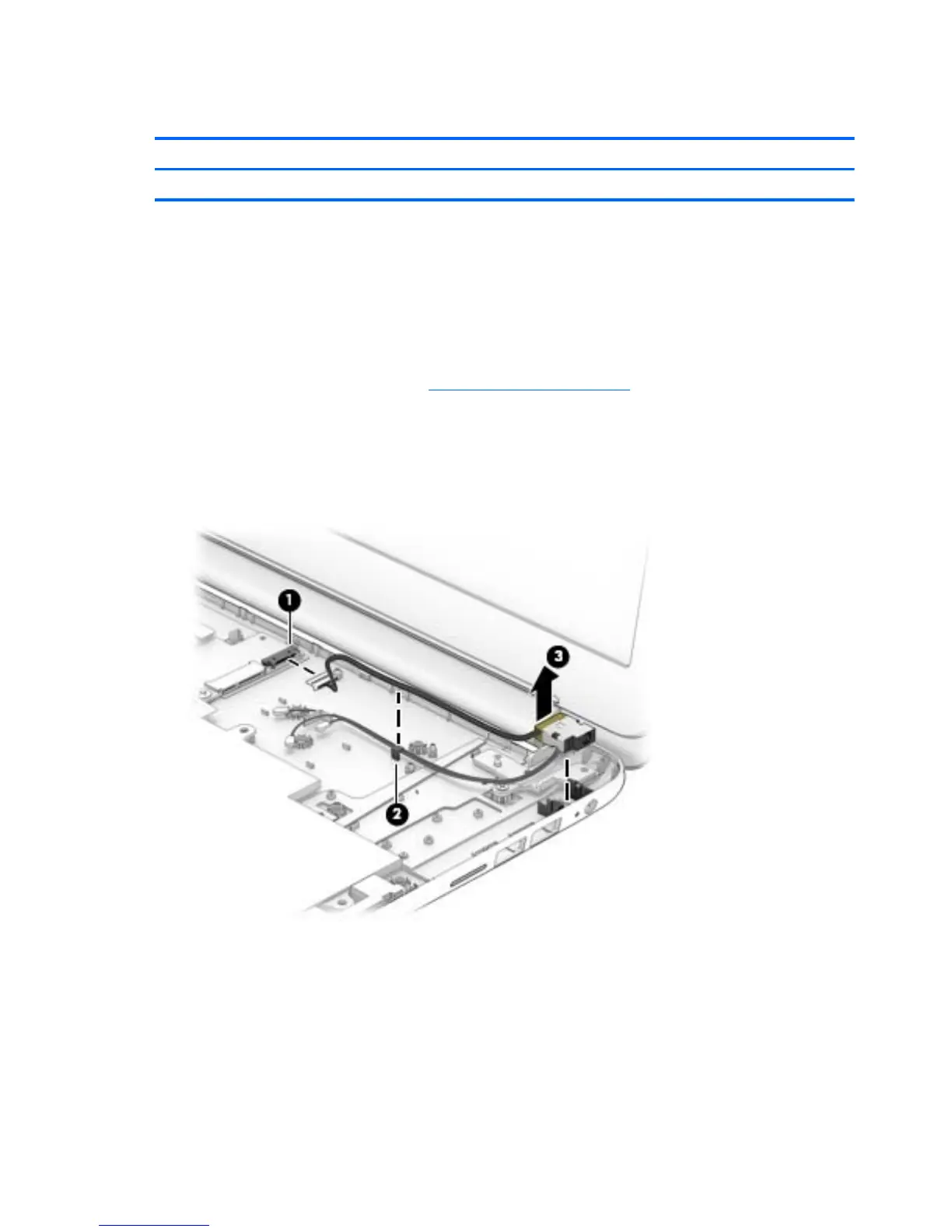

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the retention clip (2) built into the base enclosure.
3. Release the power connector (3) and from the clip built into the base enclosure.
4. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
30 Chapter 4 Removal and replacement procedures for Authorized Service Provider parts
