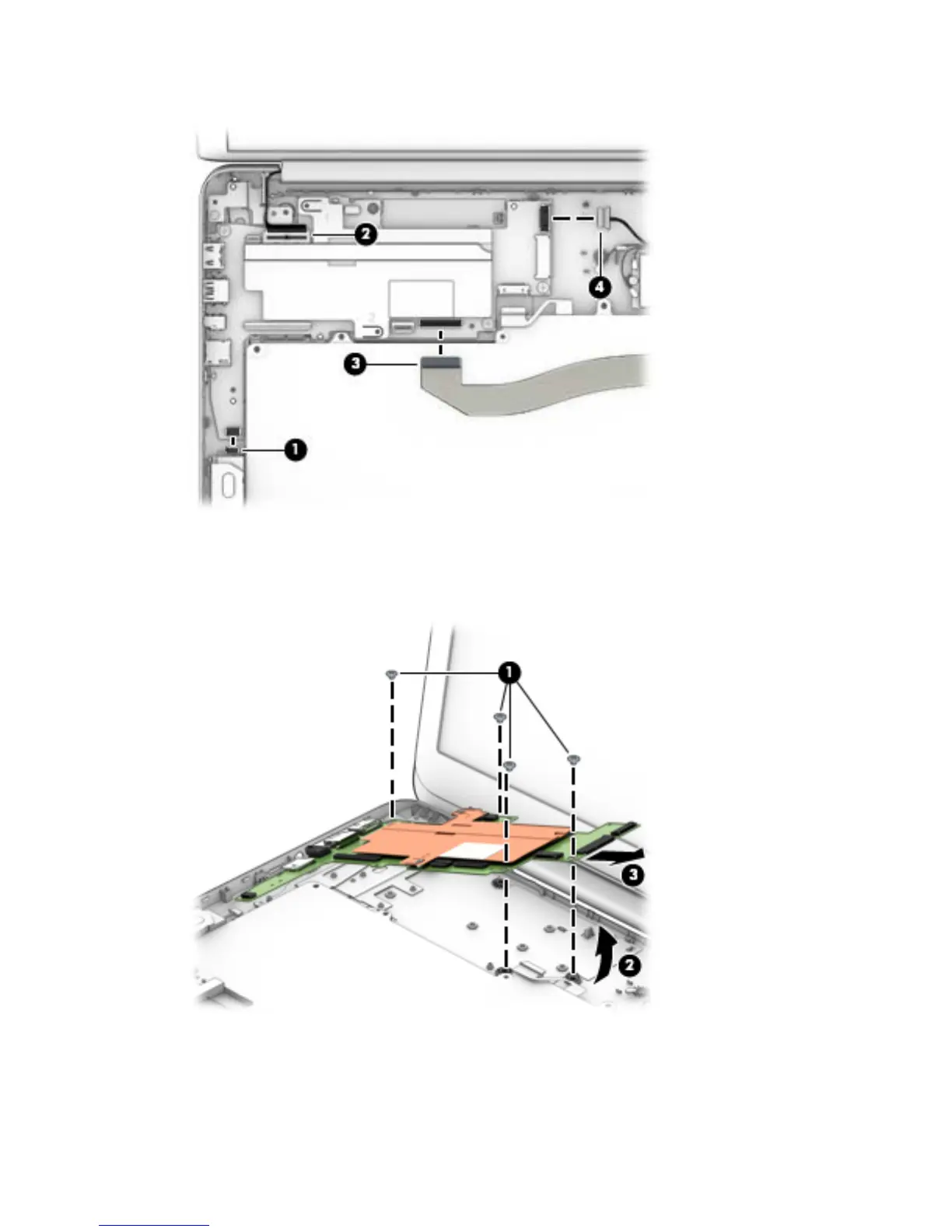

4. Disconnect the power connector cable (4) from the system board.
5. Remove the four Phillips PM1.9×2.8 screws (1) that secure the system board to the base enclosure.
6. Lift the right side of the system board (2) until it rests at an angle.
7. Remove the system board (3) by sliding it up and to the right at an angle.
Reverse this procedure to install the system board.
