19
Export a data set
Once you have selected a final data set for analysis, it is relatively simple to export
your data to columns in the Statistics Aplet. Figure 2-12 illustrates the fields of the
Export menu.

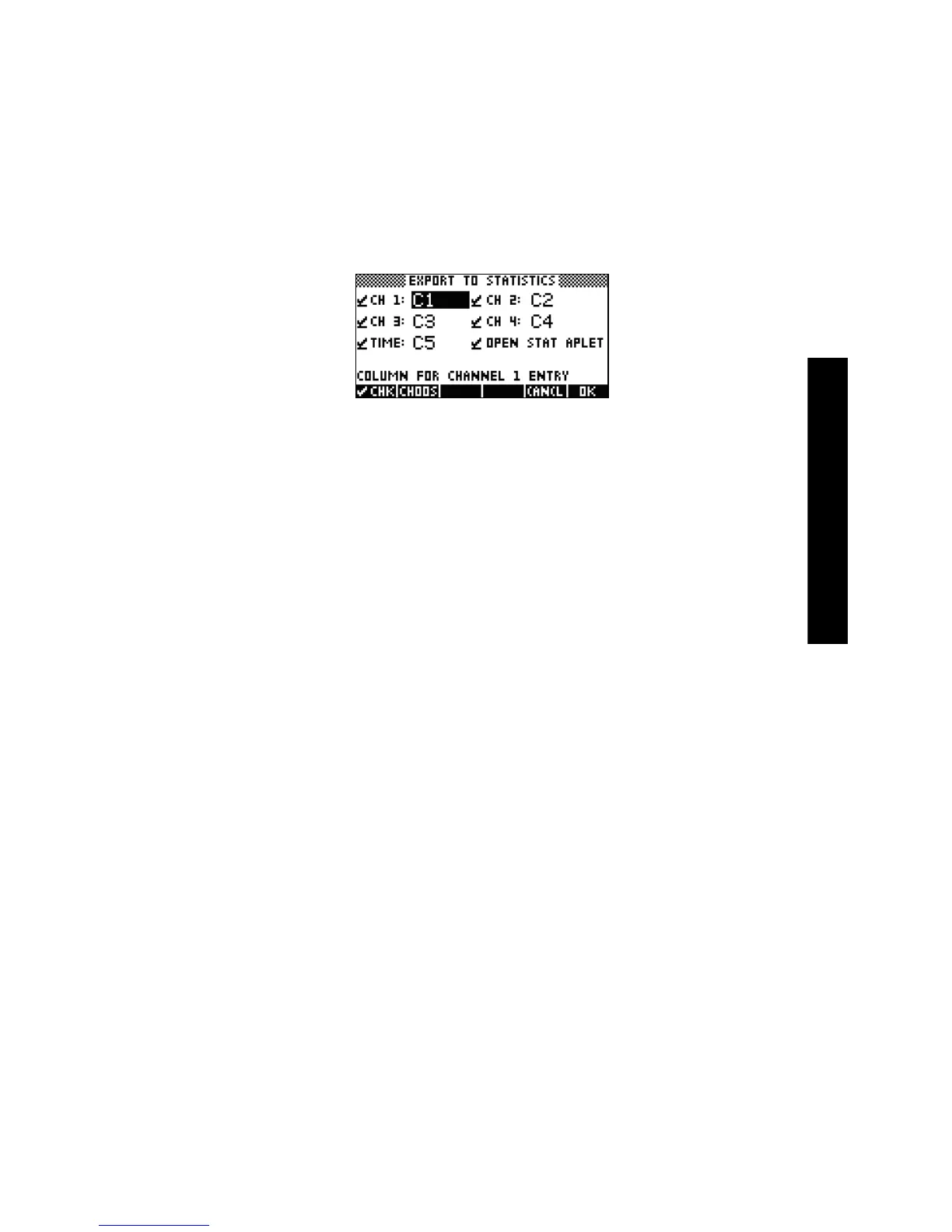

Figure 2-12 The Export menu
There are six fields in the Export menu: four for the StreamSmart 400 channels,
one for the timestamp associated with each data-tuple, and one that determines
what happens after the data is exported. The four channel fields, (CH 1, CH 2,
CH 3, and CH 4), as well as the TIME field, all behave the same way. They are
each preceded by a checkbox and followed by a dropdown box. The checkbox
allows you to select or deselect the data from each channel for exportation. By
default, all four channels and the time are selected for export. Press
!sgsy]!!CHK! to
toggle between selecting and deselecting a channel. Each channel field is also
followed by a dropdown box. This dropdown box permits you to choose the
column in the Statistics Aplet you want as the destination for the data from that
channel. Press the !CHOOS menu key to change the current column to any of the ten
columns in the Statistics Aplet. At any time, you can press !CANCL! to ignore the
changes you made and return to your data set, or press !%OK$% to proceed with
exportation of the data. Once your data set is exported, all the other data from
your experiment is deleted to make room for a new experiment. Table 2-7
summarizes the options in the Export dialogue box.
