3. Remove the cover from the unit by first lifting the rear (screw side) of the cover, and then lifting
the cover off the unit (3).

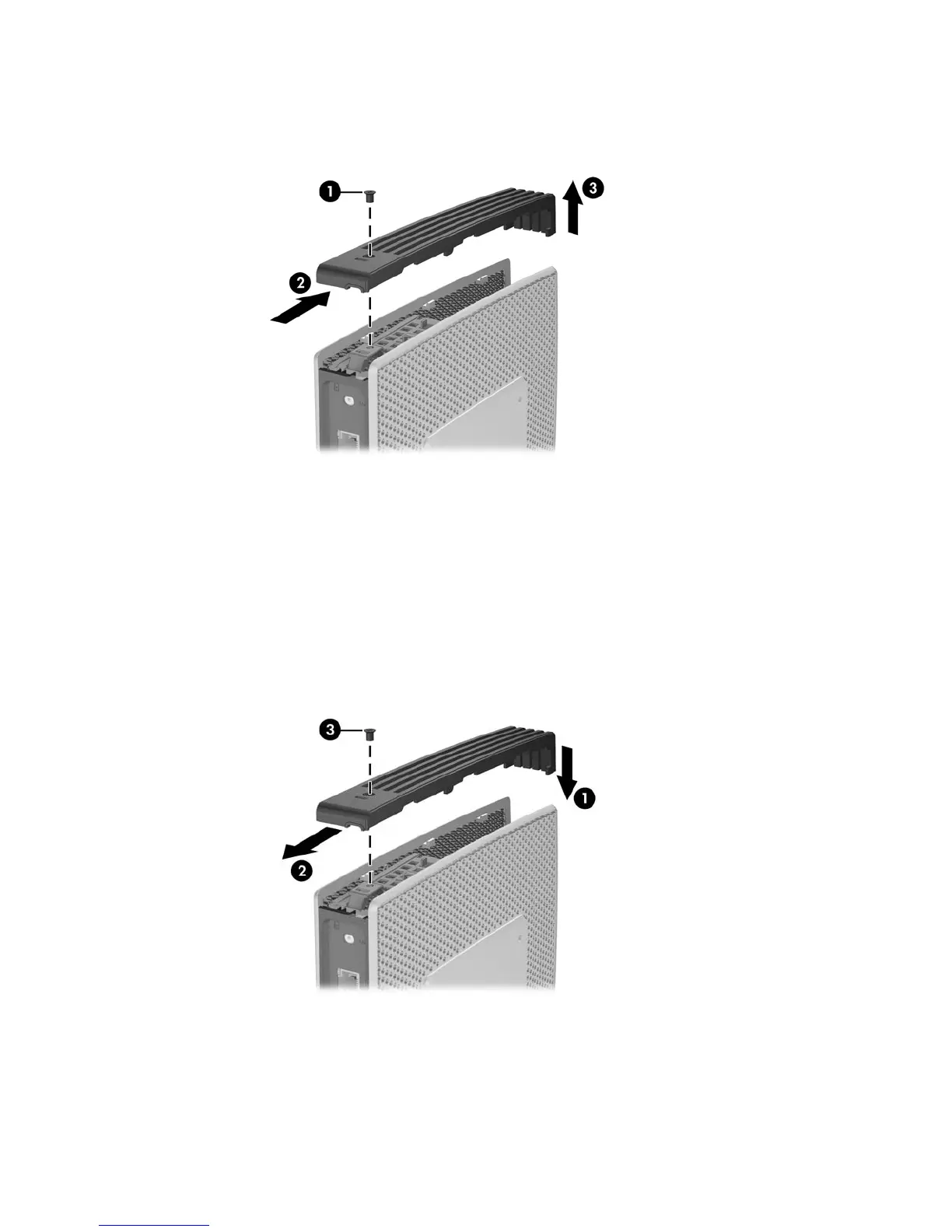

Figure 2-1 Removing the secure USB compartment cover
Replacing the Secure USB Compartment Cover
To replace the secure compartment cover:
1. Place the cover on top of the unit so it is offset about 1.27 cm (1/2 inch) toward the rear of the
unit, allowing the tabs on the cover to align and insert into the slots on the chassis (1).
2. Slide the cover toward the back of the unit until it locks in place and the cover is flush with the
front panel of the chassis (2).
3. Replace the screw (3).
Figure 2-2 Replacing the secure compartment cover
ENWW
Removing and Replacing the Secure USB Compartment Cover
13
