Removing and Replacing the Side Access Panel and
Metal Side Cover
Removing the Side Access Panel and Metal Side Cover
WARNING! Before removing the side access panel, ensure that the thin client is turned off and the
power cord is disconnected from the electrical outlet.
To remove the access panel:
1. Remove the secure USB compartment cover (1). For more information, see
Removing the
Secure USB Compartment Cover on page 12.
2. Remove the stand, if it is installed (2). See
Removing the Stand on page 6 for more information.
3. Lay the thin client on its side on a secure working surface.
●
Remove the right side access panel if you are removing or installing:
◦ battery
◦
secondary flash memory module
◦
PCI expansion module and PCI card
●
Remove the left side access panel if you are removing or installing a second SO-DIMM.
4. Slide the access panel about 6.35 mm (1/4 inch) toward the top of the unit (3), and then lift the
access panel up and off the unit (4).

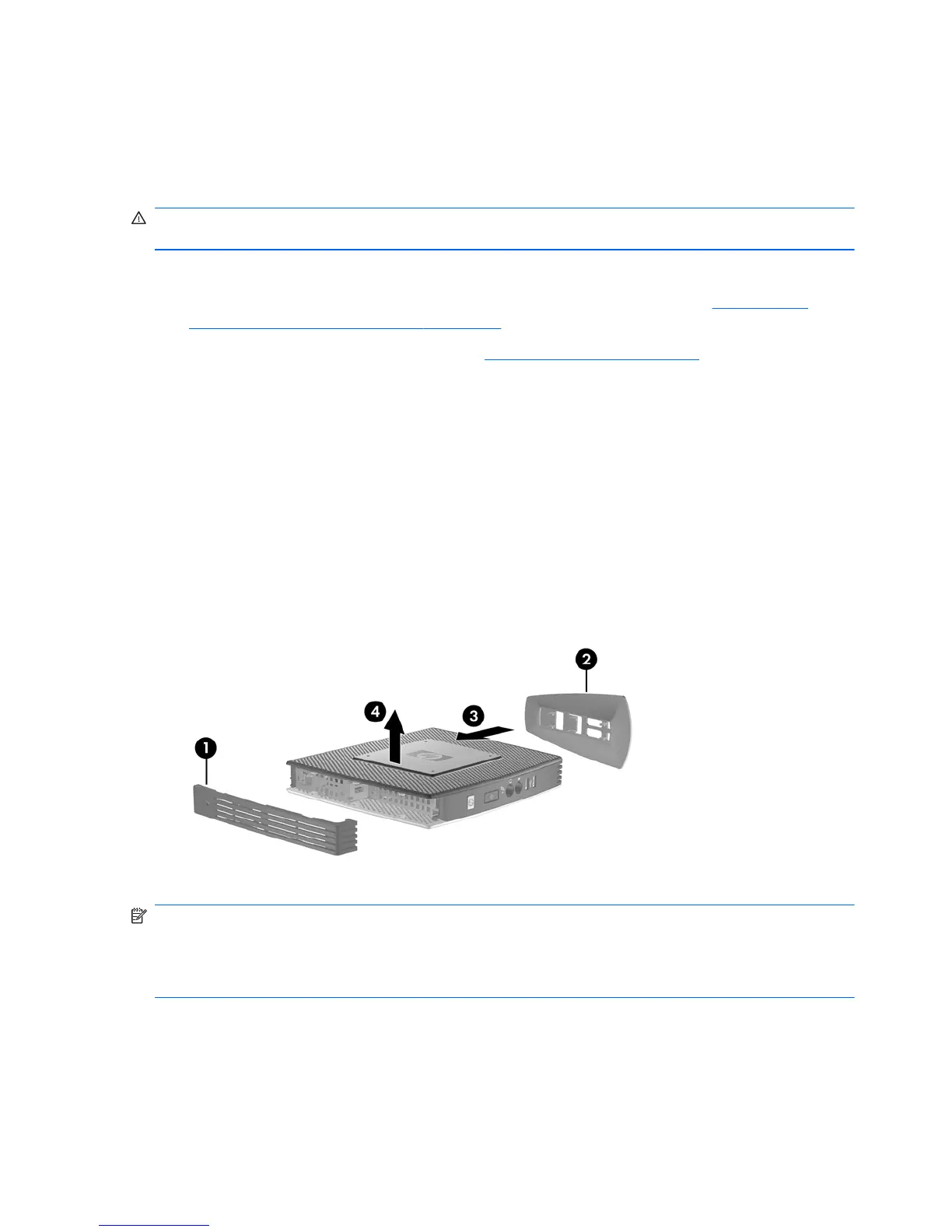

Figure 2-3 Removing the side access panel
To remove the metal side cover:
NOTE: Do not remove the metal side cover when installing a PCI Expansion Module or a second
SO-DIMM.
You must remove the metal side cover to access internal components such as the battery or the
memory.
1. Remove the four screws that secure the metal side cover to the chassis (1).
14 Chapter 2 Hardware Changes ENWW
