3. Slide the side of the mounting device attached to the thin client (1) over the other side of the
mounting device (2) on the device on which you want to mount the thin client. An audible 'click'
indicates a secure connection.

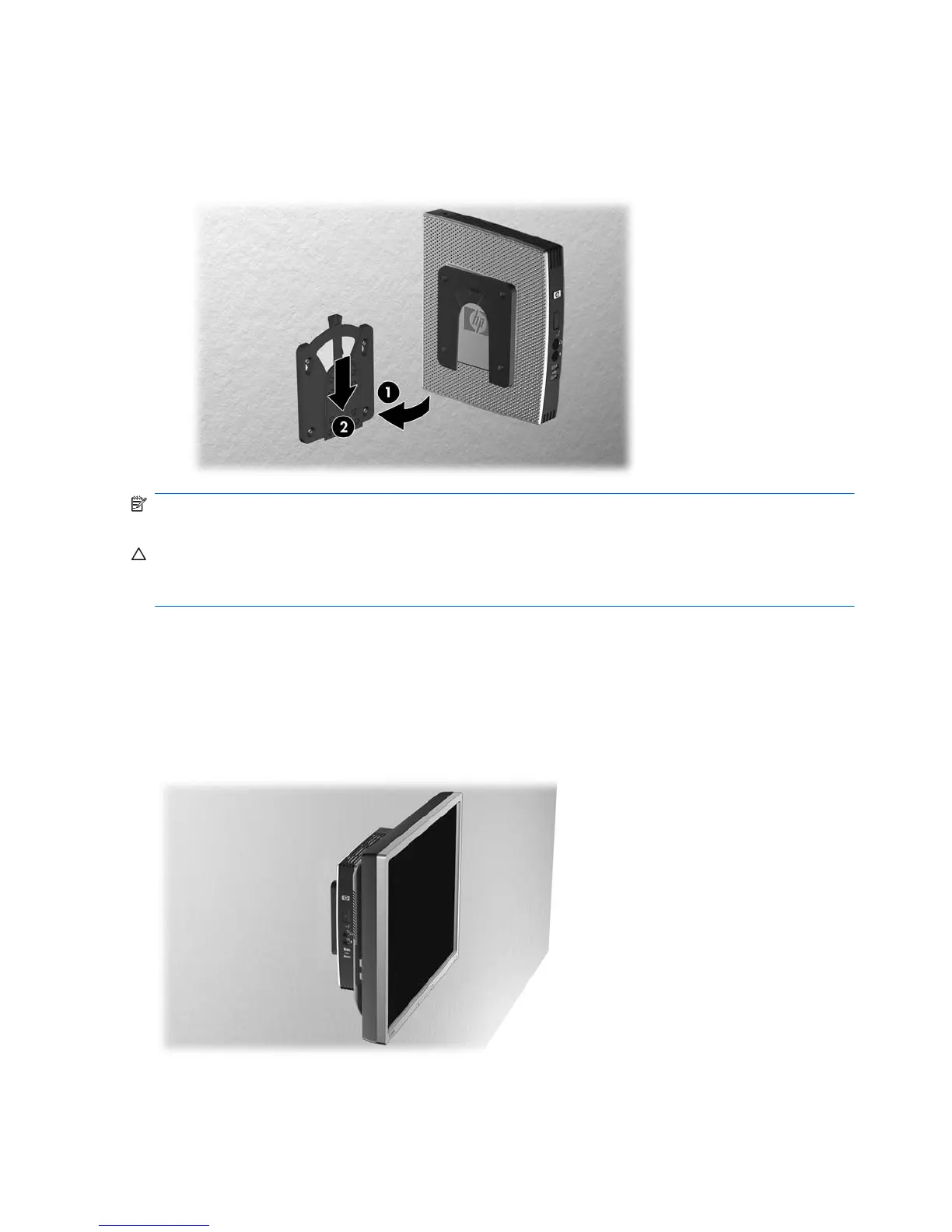

Figure C-4 Connecting the thin client
NOTE: When attached, the HP Quick Release automatically locks in position. You only need to
slide the lever to one side to remove the thin client.
CAUTION: To ensure proper function of the HP Quick Release and a secure connection of all
components, make sure both the release lever on one side of the mounting device and the rounded
opening on the other side face upward.
Supported Mounting Options
The following illustrations demonstrate some of the supported and not supported mounting options for
the mounting bracket.
●
You can mount a thin client between a flat panel monitor and the wall.
Figure C-5 Thin client mounted with flat panel on wall
●
You can mount the thin client on the back of a flat panel monitor stand.
26 Appendix C Mounting the Thin Client ENWW
