Removal and Replacement Procedures
3-4 HP TFT5110R Maintenance and Service Guide
HP CONFIDENTIAL Codename: Pug Part Number: 292490-001 Last Saved On: 10/23/02 10:13 AM
Removing the Rear Cover
To remove the rear cover:
1. Rotate the monitor to an upright position.
2. Remove the rear screw (1), securing the rear cover to the metal tray.
3. Slide the rear cover back (2) and rotate it out of position (3).
1
2
3

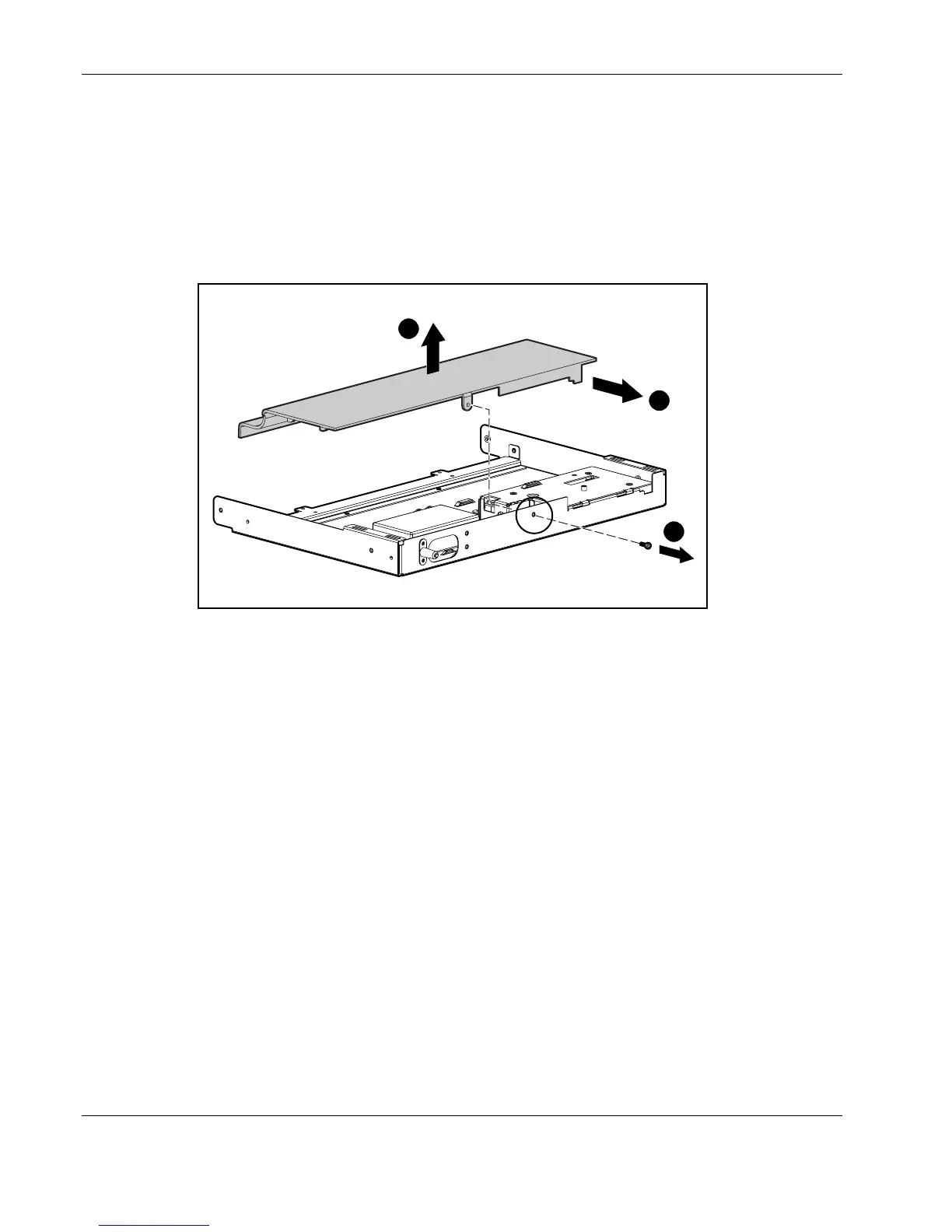

Figure 3-2: Removing the rear cover
To replace the rear cover, reverse the above procedure.
