HP TFT5110R - Components Exploded View

Illustrated Spare Parts List
2-2 HP TFT5110R Maintenance and Service Guide
HP CONFIDENTIAL Codename: Pug Part Number: 292490-001 Last Saved On: 10/18/02 2:27 PM
Components Exploded View
6
3
4
8
6
5
4
7
2
1
6

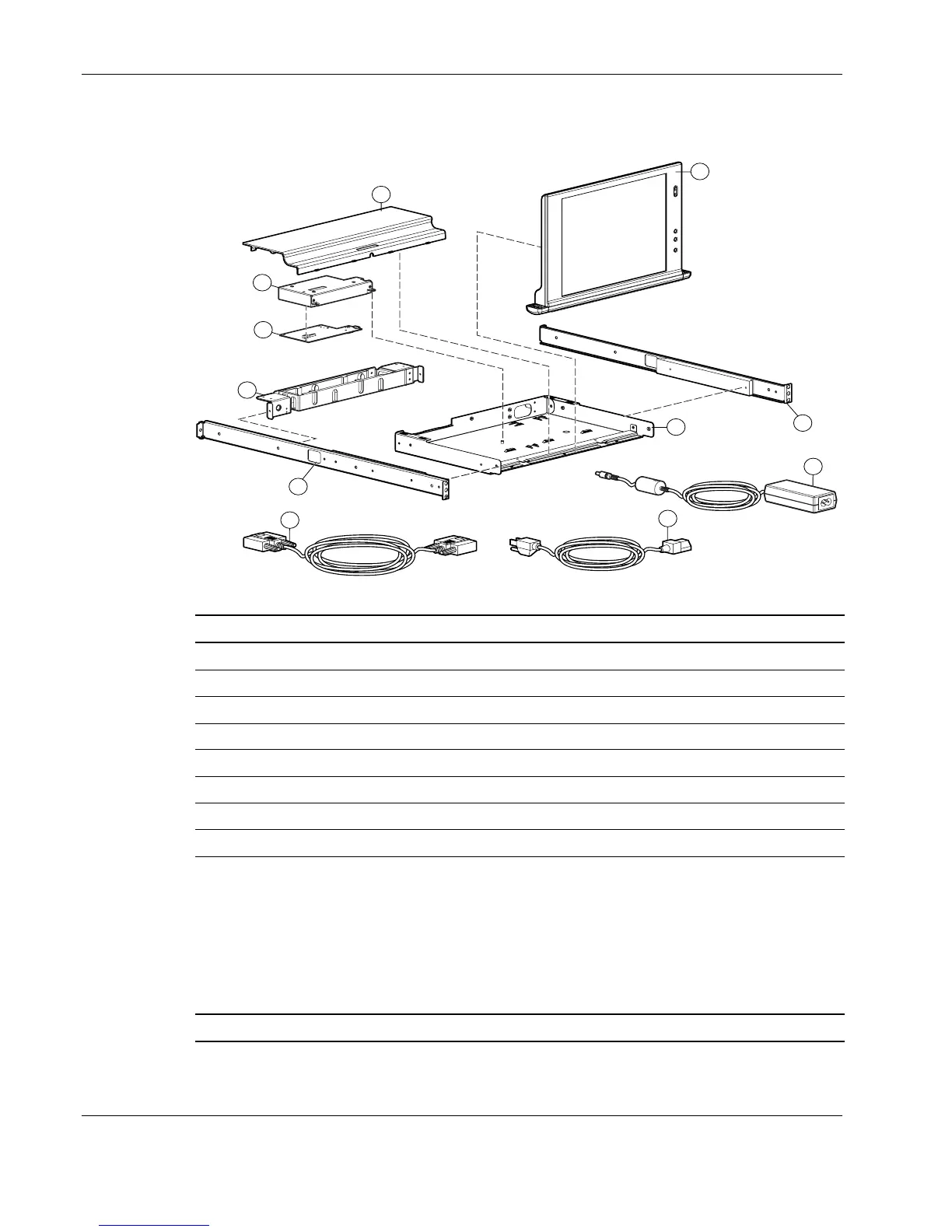

Figure 2-1: TFT5110R
Item Description Spare Part Number
1 SPS-PLASTIC KIT, MISC, 5110R 300963-001
2 SPS-MONITOR, TFT, 5110R, 1U 300962-001
3 SPS-ADPTRAC 40W 4PRONG/MINIJCK 218319-001
4 SPS-TRAY, METAL, 5110R 300964-001
5 SPS-BD, CNTRLR 229847-001
6 SPS-RACKMOUNT KIT, 5110R 300965-001
7 SPS-CA, AC LINE, C5-C14, ADAPTER 192514-001
8 SPS-CA, VGA, MALE-MALE, 9FT 238729-001
9 SPS-CORD, AC PWR, 10’, BLK* 255135-001
SPS-CORD, AC PWR, 10’, BLK-EURO* 255135-021
SPS-CORD, AC PWR, 10’, BLK-UK* 255135-031
SPS-CORD, AC PWR, 10’, BLK-IT* 255135-061
SPS-CORD, AC PWR, 10’, BLK-SI* 255135-111
SPS-CORD, AC PWR, 10’, BLK-JP* 255135-291
* Not shown
