Removal and Replacement Procedures
3-16 HP TFT5110R Maintenance and Service Guide
HP CONFIDENTIAL Codename: Pug Part Number: 292490-001 Last Saved On: 10/23/02 10:13 AM
To replace the cable management arm assembly, reverse the above procedure.
Removing the Mounting Rails w/Slides
IMPORTANT: You must remove the cable management arm assembly and the TFT5110R before
removing the mounting rails w/slides.
To remove the mounting rails w/slides:
1. Remove the screw (1) securing the mounting rails w/slides to the rear of the rack.
2. Remove the two screws (2) securing the mounting rails w/slides to the front of the rack.
3. Remove the mounting rails w/slides from the rack.
1
2

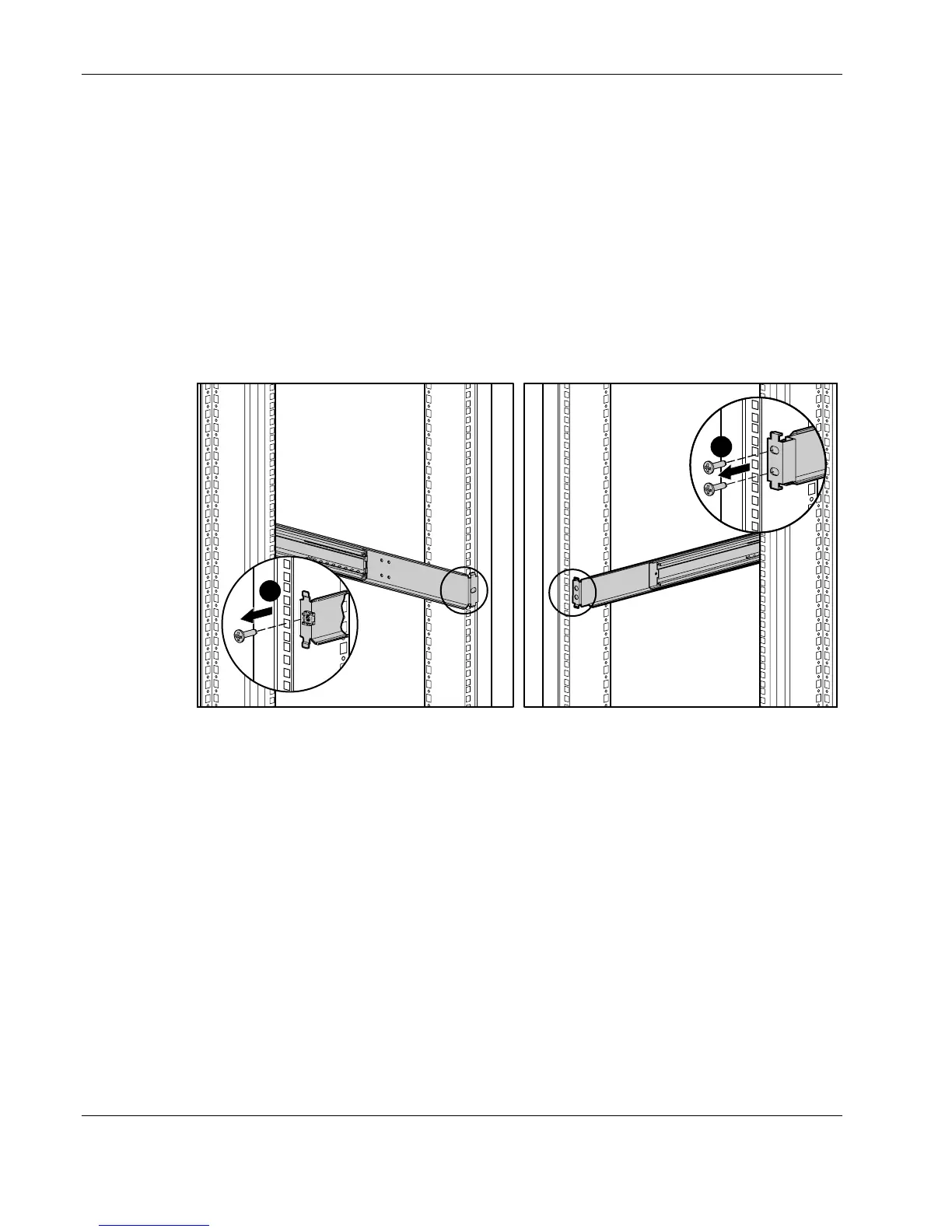

Figure 3-17: Removing the mounting rails w/slides
To replace the mounting rails w/slides, reverse the above procedure.
