Removing the Metal Controller Cover and Controller board
To remove the metal controller cover:
1. Remove the rear cover.
2. Remove the AC brick.
3. Remove the screw securing the grounding clip to the metal controller cover.
4. Disconnect all cables from their source, except for the VGA cable.
5. Remove the two screws securing the metal controller cover to the metal tray.

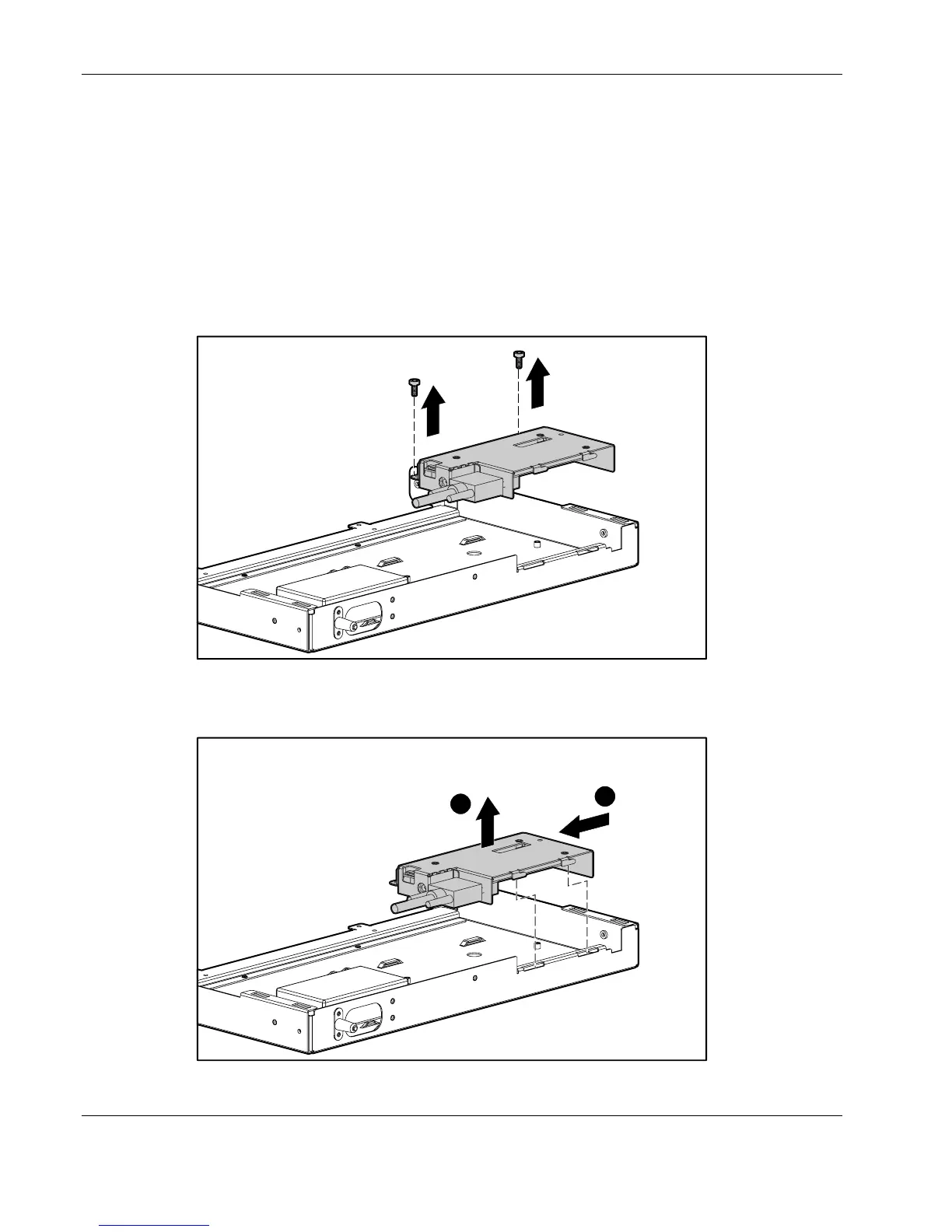

Figure 3-11: Removing screws from metal controller cover
6. Slide the metal controller cover (1) and lift it straight out (2).
2
1
Figure 3-12: Removing metal controller cover
