Component identification 10

Item Description

1 REPO port

2 Ground bonding screw

3 USB communications port

4 Serial communications port

5 Load segment 1 (two NEMA 5-20T receptacles)

6 Load segment 2 (two NEMA 5-20T receptacles)

7 PDU output (NEMA L - 0R) receptacle (load segment 1)

8 ERM connector

9 Cord retention clip attachment locations

10 Load segment circuit breakers

11 Power cord with L5-30 plug

12 Option slot

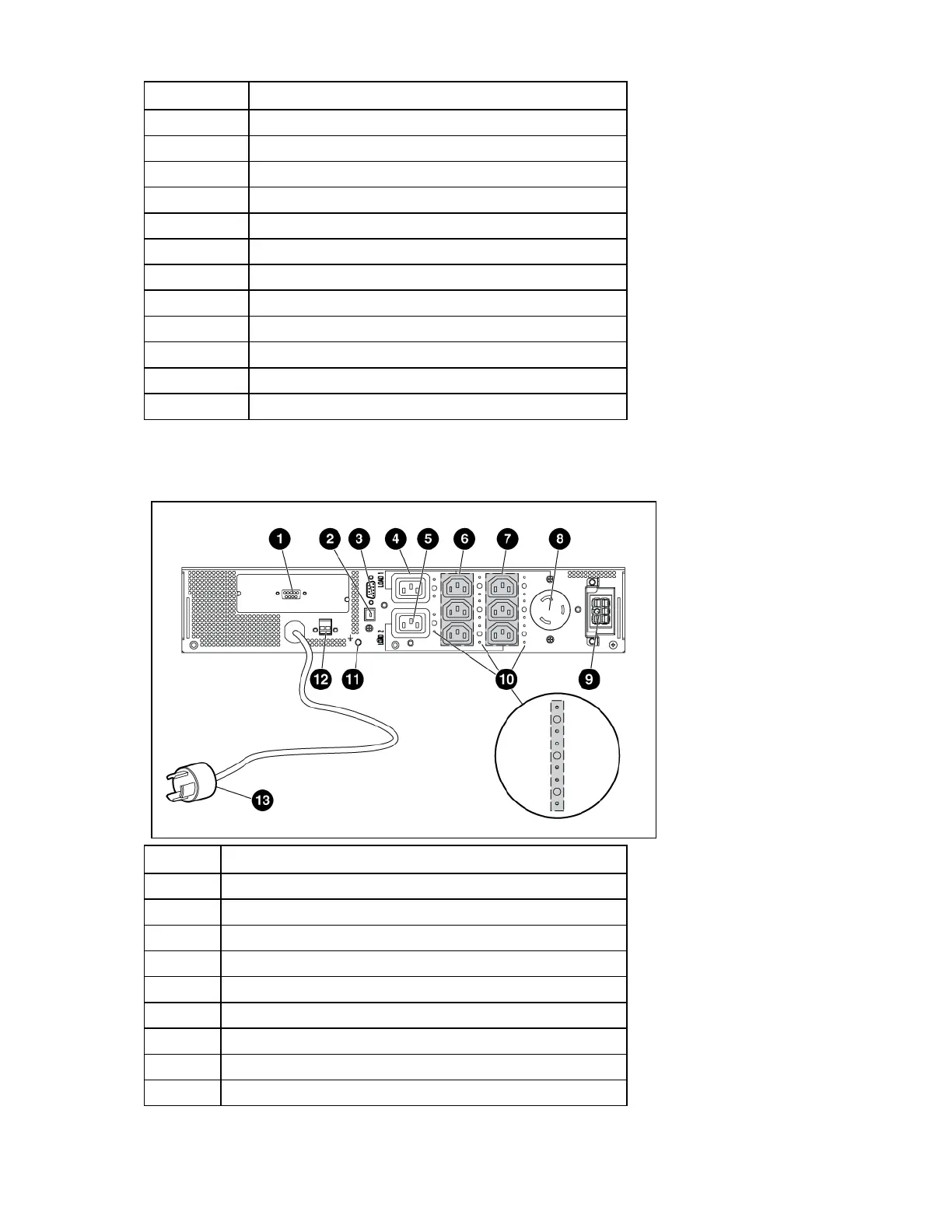

R/T3000h NA and R/T3000h JPN rear panel

Item Description

1 Option slot

2 USB port

3 Serial communications port

4 Load segment 1 (one IEC-320-C19 receptacle)

5 Load segment 2 (one IEC-320-C19 receptacle)

6 Load segment 1 (three IEC-320-C13 receptacles)

7 Load segment 2 (three IEC-320-C13 receptacles)

8 PDU output (L6-20) receptacle (load segment 1)

9 ERM connector

5 3
