HP UPS R/T3000 User Manual

Installation 19
4.

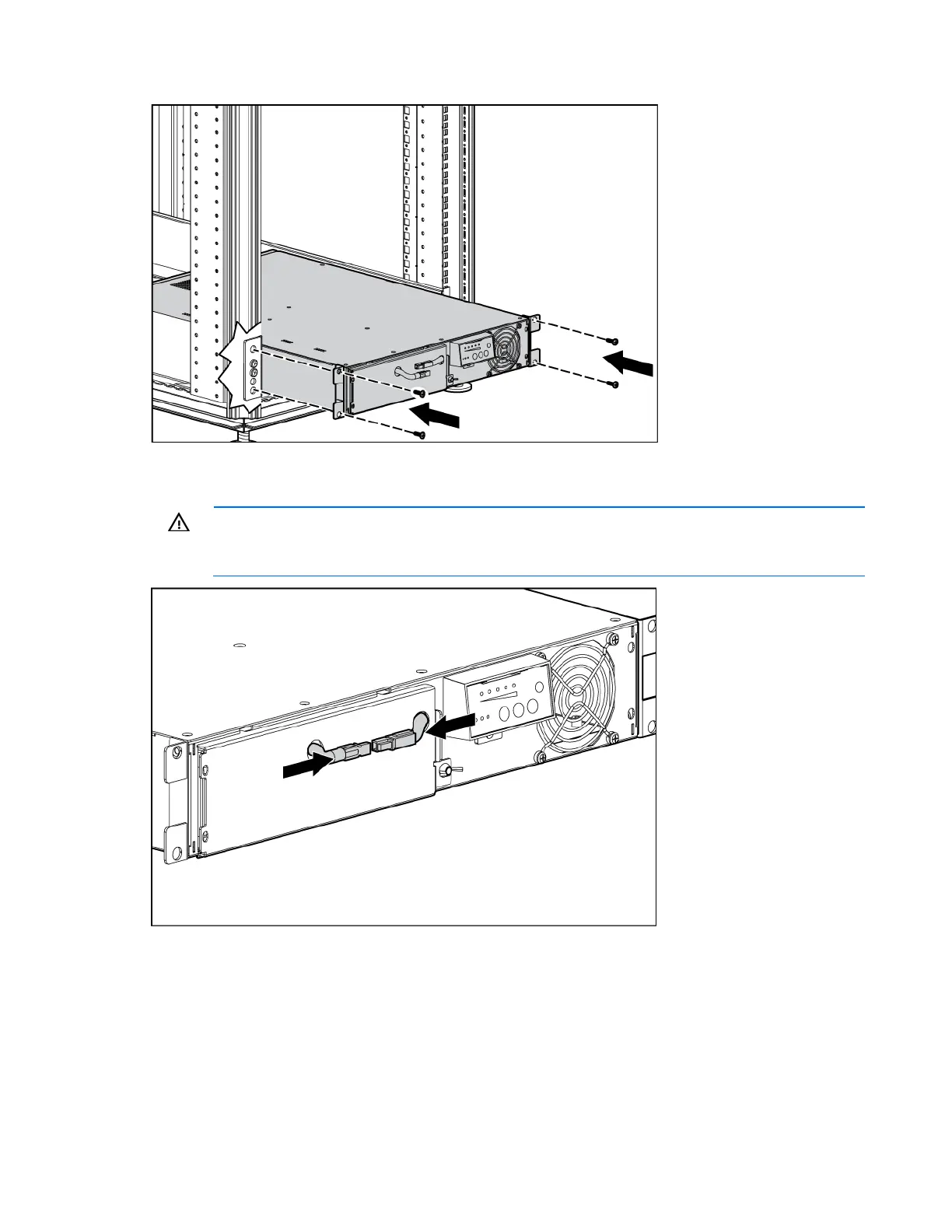

Attach the chassis to the rack using the supplied screws.
Connecting the battery leads
WARNING: To prevent personal injury from electric shock or damage to the equipment,
remove the battery lead labels, and verify that the ERM circuit breakers are in the Off
position.

HP UPS R/T3000 Specifications

General

Power Capacity	3000 VA / 2700 W
Battery Type	Sealed Lead-Acid (SLA)
Rack Size	2U
Frequency	50/60 Hz
Operating Humidity	5% to 95% non-condensing
Form Factor	Rack/Tower
Output Voltage	230 VAC
Interface	USB, Serial
Output Connector(s)	IEC 320 C13, C19
Transfer Time	4 ms typical
Operating Temperature	0°C to 40°C
Battery Recharge Time	3 hours
