HP UPS R/T3000 - HP UPS R;T3000 Models; R;T3000 NA and R;T3000 j JPN Rear Panel

Component identification 9
The front panel is shown with the bezel removed.
Item LED description Load level
1 Self Test On—The load level is greater than 10%.
2 Battery Fault On—The load level is greater than 25%.
3 Site Wiring Fault On—The load level is greater than 50%.
4 Overtemperature On—The load level is greater than 75%.
5 Overload On—The load level is greater than 100%.
6 On Bypass
7 On Battery
8 Utility
For more information, see "LED troubleshooting (on page 52)" .
HP UPS R/T3000 models
UPS model Description
R/T3000 NA and R/T3000j
JPN
•
Domestic/Japanese
•
Low-voltage
•
Nondetachable NEMA L5-30 plug
R/T3000h NA and R/T3000h
JPN
•
Domestic
•
High-voltage
•
Nondetachable NEMA L6-20 plug
R/T3000 INT
•
International
•
High-voltage
•
Detachable country-specific plug

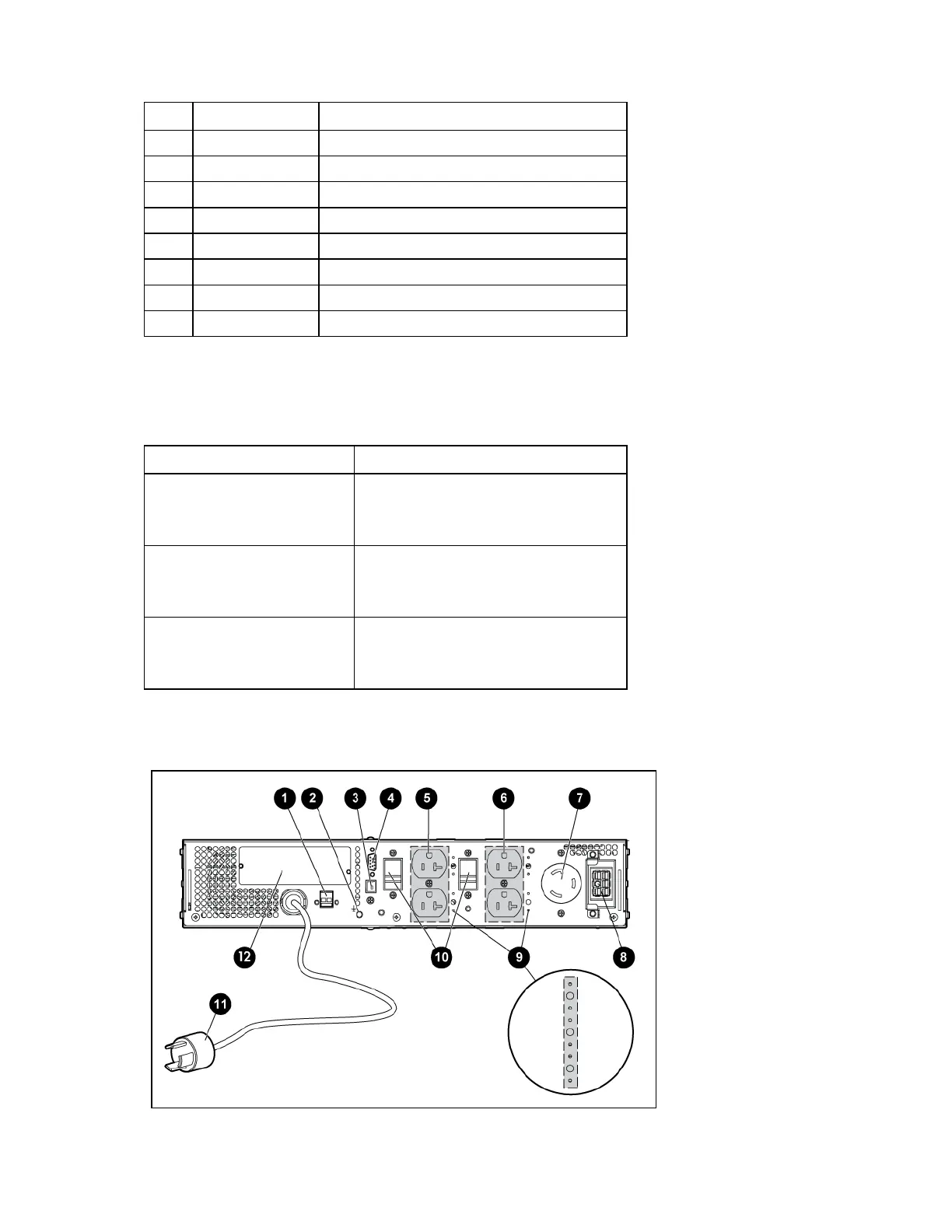

R/T3000 NA and R/T3000j JPN rear panel
