Field Replaceable Units (FRUs)
FRU Removal and Replacement
PCI Cage
To remove the PCI Cage, do the following:

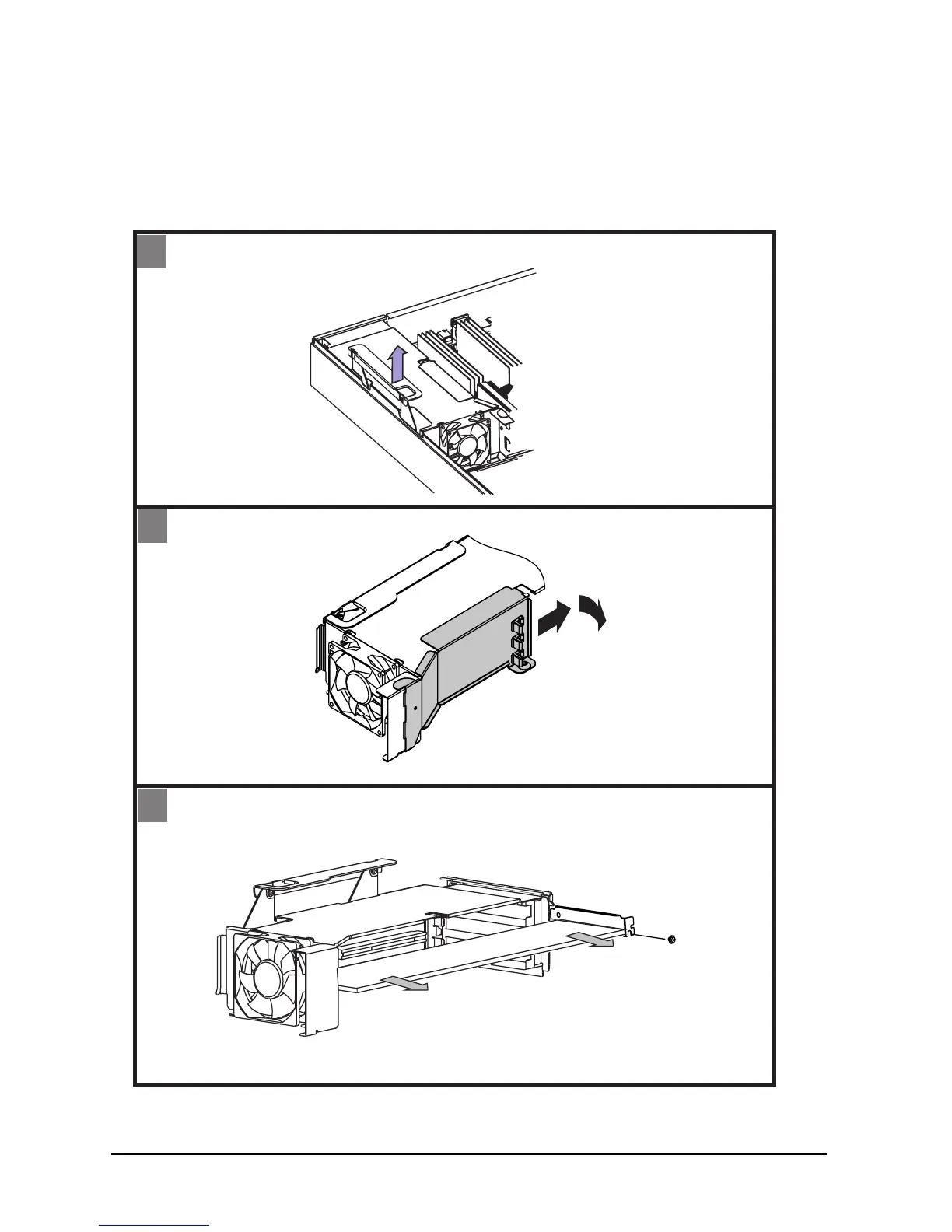

Figure 4-9. Removing the PCI Cage
1
1. Slide PCI retainer back
2. Lift off cage
2
3
- Lift PCI handle to remove cage from workstation
- Remove screw to remove card
- Slide I/O card out as shown
PCI CARD
RETAINER
Bulkhead
screw
1
2
