Setting Up the Monitor
3–6 User’s Guide
Selecting the Signal Connectors and Cables
There are two signal input connectors: One VGA connector and
one DVI-I connector. The monitor will automatically determine
which inputs have valid video signals. The inputs can be selected
through the On-Screen Display (OSD) feature or by pressing the
Signal Input 1 or 2 buttons on the monitor front bezel.
The video mode supported by the DVI-I connector is determined by
the video cable used. For digital operation, use the DVI-D to DVI-D
signal cable provided. For analog operation, a DVI-A to VGA
signal cable must be attached to the DVI-I input (not provided with
the monitor).

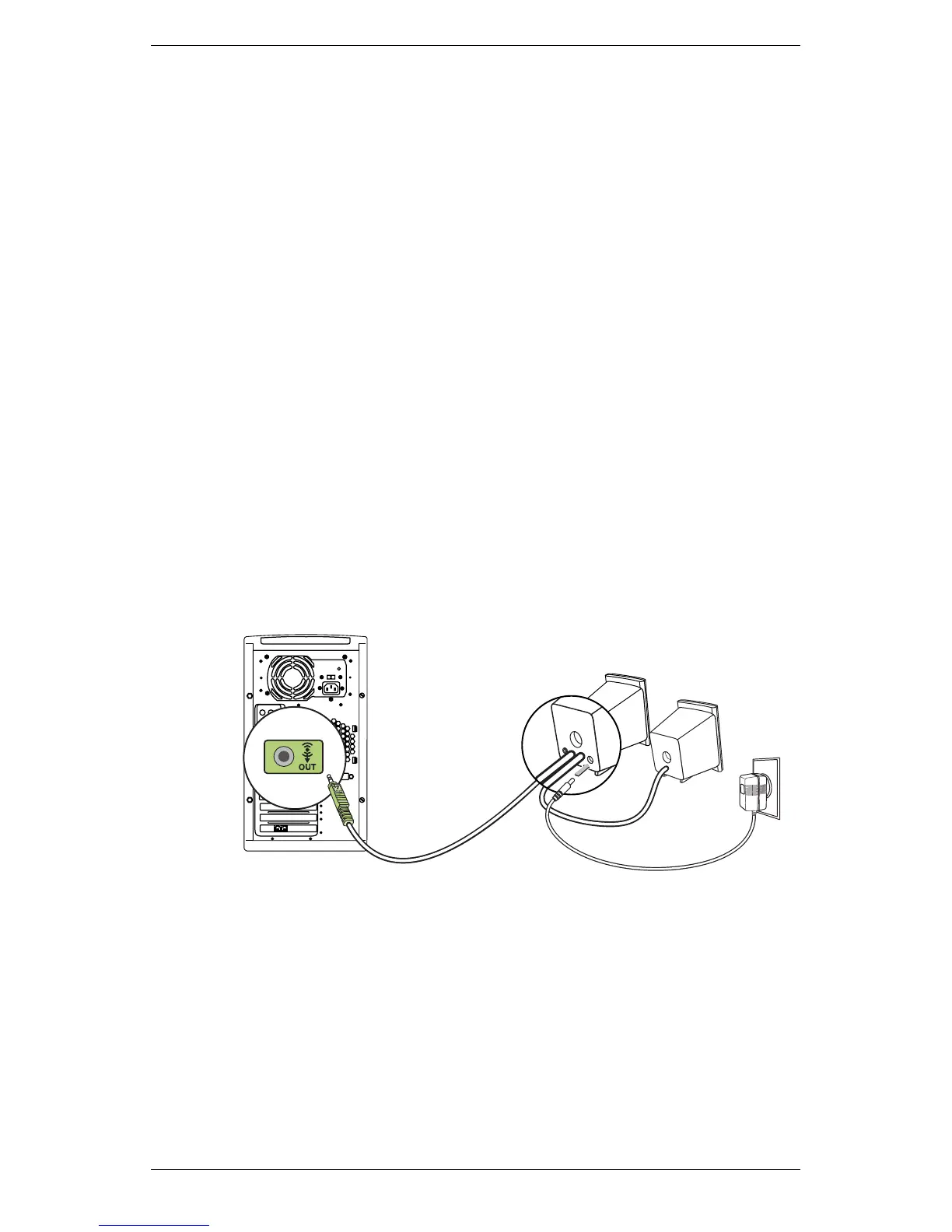

Connecting Speakers
A set of speakers are included with your monitor (select
models only).
1. Place the speakers in a location near the monitor.
2. Plug the right speaker into the main power source.
3. Plug the right speaker audio cable (green plug) into the PC.
Refer to your PC user’s guide for instructions on how to connect
your speakers to the PC.
4. Turn on the PC, the monitor, and the speakers.
