Setting Up the Monitor
3–8 User’s Guide
1. Disconnect and remove the signal and power cables from the
back of the monitor.

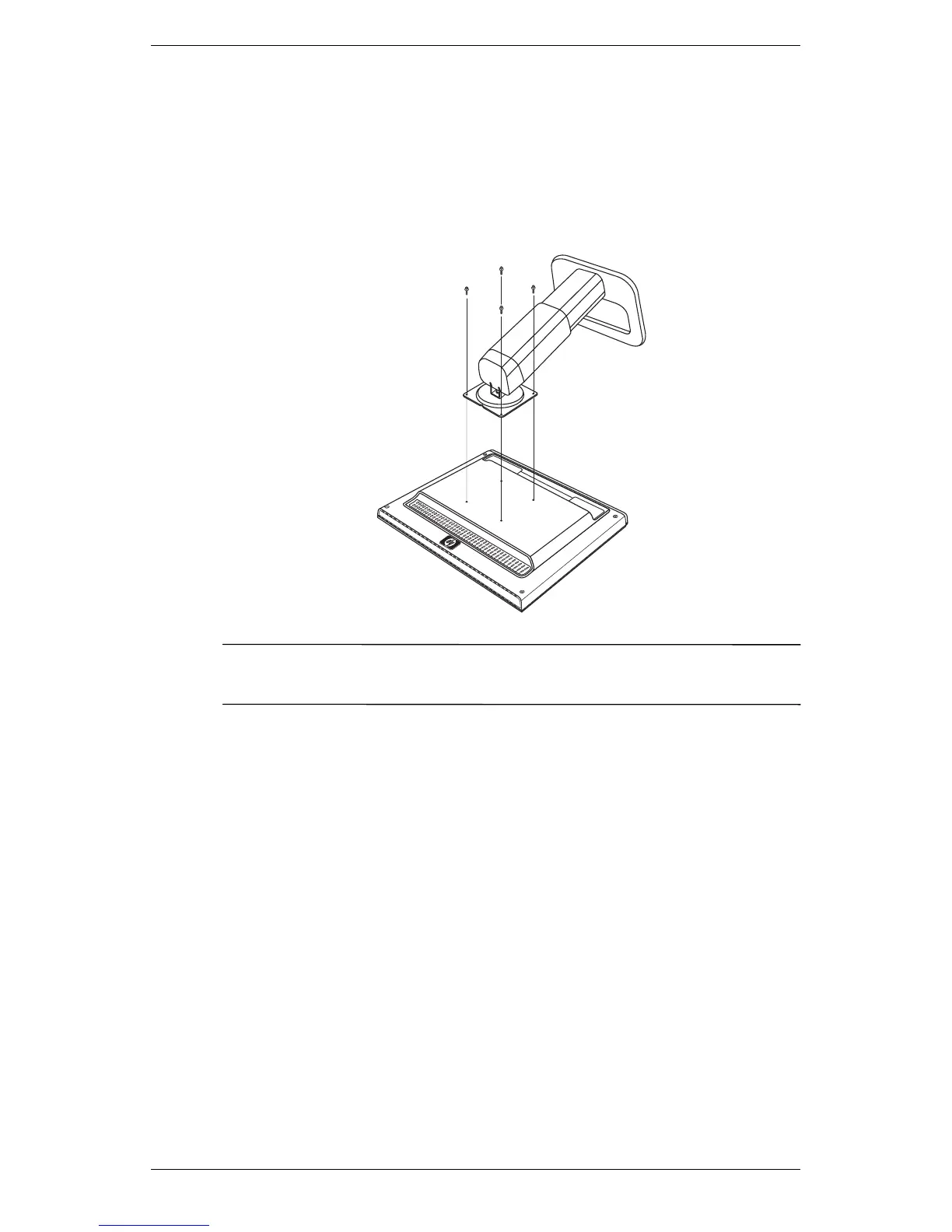

2. Remove the four screws as shown in the following illustration.
Ä
CAUTION: Ensure that the bottom of the monitor base is positioned
over a table or desktop before removing the base from the monitor.
3. Remove the monitor base from the monitor.
Mounting the Monitor
1. Remove the monitor base. Refer to “Removing the Monitor
Base” steps in the previous section.
When the base has been removed, four threaded mounting
holes are exposed on the monitor panel. These are to be used
for mounting purposes. These mounting holes are spaced 100
mm apart and are compliant with the Video Electronics
Standards Association (VESA) standard for mounting flat panel
displays.
2. Mount the monitor to a swing arm or other mounting fixture by
following the instructions included with the mounting fixture to
be used.
